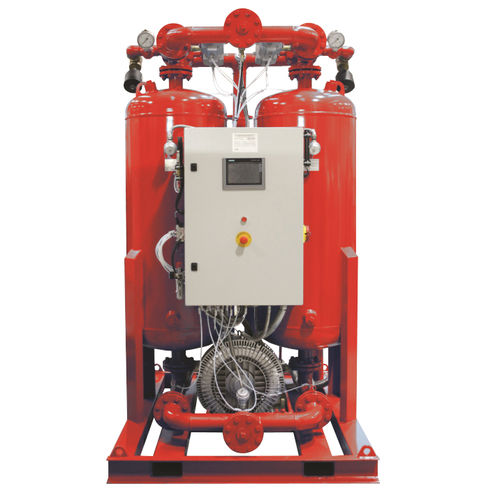

Desiccant compressed air dryer OCD-H series

single-stageblower purge

The regeneration process at OCD-H series blower purge heated desiccant dryers provide by centrifugal blower and high efficient heater. By this way compressed air which obtain with cost does not use for service air. The complete automatic drying system use blower to pull ambient air for passing through heater. The hot air stream flows opposite with drying flow direction. The hot air which reach above of 200 °C temperature, provide re-generation for desiccant bed and take away completely the moisture that hold by desiccant. For providing real energy save advanced control system dew point meter measure continuously dew point for performing heating and re-generation processes. All heating section isolated for providing efficiency. STANDARD PROPERTIES OF OCD-H SEIRES BLOWER PURGE HEATED DESICCANT DRYERS - Displaying and adjustment dew point by dew point meter - Computer control - Display working mode, alarms and pressure - Remote control - Low pressure alarm - Minimum pressure valve with indicator - High pressure safety and alarms OCD-H series dryers include all properties of OCD series Heatless dryers, OCD - H can work at 3 different working modes as OCD-H or inside heated or OCD
