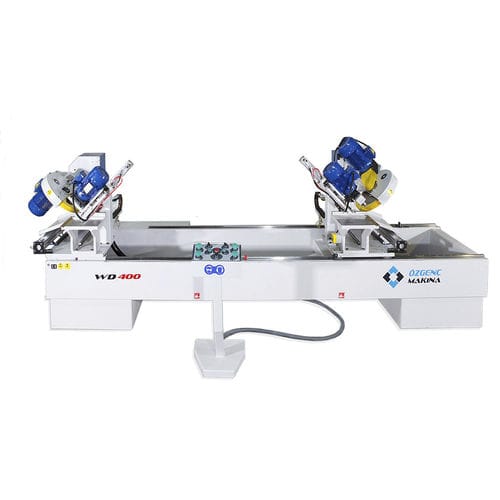

Circular saw WD 400

woodCNC

Application Field: After the door case is shaped and sized the heads are cut in a 45 degree angle and joint screwing holes are drilled by using WD-400. General Properties: 0 - 45 angle cutting and 45 degree drilling ability. Left head stable,right head mobile Durable body construction Cutting and drilling units mounted on high precision linear rail systems The rotating head is manually adjusted 2 x 400 circular cutting saws 2 x #7 multi drilling heads PLC Controlled Pneumatic drilling and rail system Vertical and horizontal clamping units CE certified quality & operation standards Technical Specifications Max Length 2600 mm Min Length 550 mm Max Case Dimension (45°) 320x80 Circular Saw Blades Dia. 400 mm No. of Spindles ( Drilling Heads) 7x32 mm Machine Length 3600 mm Machine Width 1600 mm Machine Height 1500 mm
