Three spindle copy router OMRM 117
verticalwith rotary translation unithorizontal

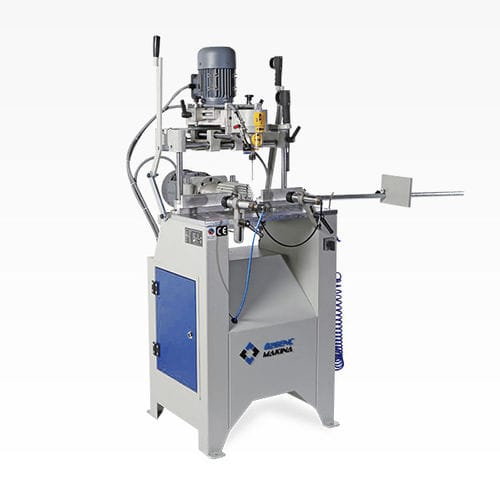

Three spindle copy router - OMRM 117 - Ozgenc Makina - vertical / with rotary translation unit / horizontal

Three spindle copy router - OMRM 117 - Ozgenc Makina - vertical / with rotary translation unit / horizontal - image - 2

Three spindle copy router - OMRM 117 - Ozgenc Makina - vertical / with rotary translation unit / horizontal - image - 3

Three spindle copy router - OMRM 117 - Ozgenc Makina - vertical / with rotary translation unit / horizontal - image - 4

Three spindle copy router - OMRM 117 - Ozgenc Makina - vertical / with rotary translation unit / horizontal - image - 5

Add to favorites

Compare this product

Characteristics

Number of spindles: three spindle
Other characteristics: vertical, horizontal, with rotary translation unit
X travel: 280 mm
(11.02 in)
Y travel: 125 mm
(4.92 in)
Z travel: 90 mm
(3.54 in)
Rotational speed: 900 rpm, 2,810 rpm
(5,655 rad.min-1, 17,656 rad.min-1)
Power: 2.5 kW
(3.4 hp)

Description

Application field: Designed for copy milling and triple drilling of aluminium and PVC profiles General properties: Two independent routing units, one horizontal and one vertical Horizontal unit, three holes with fixed spacing can be drilled Vertical unit can be used for the copy routing with the copying template Movement on recirculating ball bearings, ensure great stability and precision to the head unit, making it possible to work on every kind of aluminium and PVC profiles Smooth movement of units is carried out with shock-absorbers Scale of copy-milling operation 1:1 Horizontal pneumatic clamping kit Adjustable operation depth 4-position rotating star-type depth adjustment device for copy-milling Side length stop Option: Cooling system for aluminium profile processing
