Double-head cutting machine GEMINI Xbladefor aluminumfor PVC
Add to favorites
Compare this product
Characteristics
- Technology
- blade
- Material
- for aluminum, for PVC, for wood
- Product handled
- profile
- Control type
- servo-driven
- Applications
- for industrial applications
- Configuration
- double-head, 3-axis
- Other characteristics
- automatic, with servo-motor, vertical, horizontal, 90°
- X travel
Min.: 450 mm
(17.72 in)Max.: 6,000 mm
(236.22 in)- Tube diameter
550 mm
(22 in)- Operating pressure
Min.: 6 bar
(87.02 psi)Max.: 8 bar
(116.03 psi)- Overall length
9,040 mm
(356 in)- Maximum width
2,210 mm
(87 in)- Height
1,365 mm
(54 in)
Description

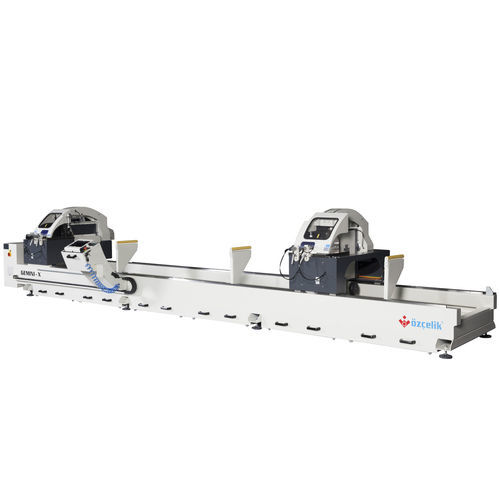

3 axis servo controlled radial double head radial saw GEMINI – X is ideal for cutting aluminum and PVC profiles in various angles and thickness.
GEMINI – X is designed for cutting larger profiles. It provides rapid and automatic positioning of heads with servo control at any angles between 30° and 90°.
Double head GEMINI – X enables simultaneous cutting of profile lengths from 450 mm to 6000 mm and eliminates barriers for cutting of 6000 mm and longer profiles.
Safety is a topmost priority for GEMINI – X together with the horizontal and vertical clamps along with profile support units which improve the cutting quality.
