DC motor controller 000828

brushlessfield-orientedpotentiometer

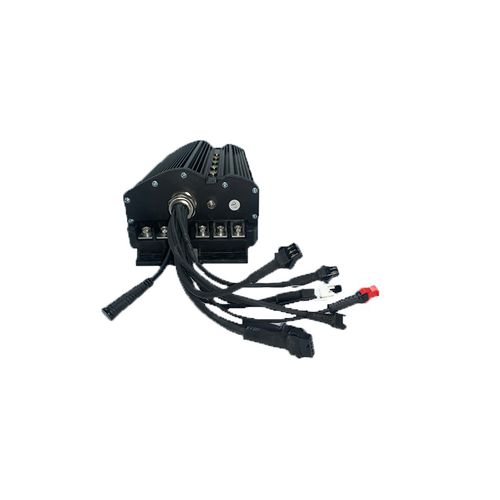

The OZO controller 24V 36V 48V 60A integrates high quality electronic components from the automotive world. For electric motors above 1500W and up to 5000W Dual sensored / sensorless adaptive field-oriented sinusoidal mapping (FOC) will allow to power main brushless DC motors (BLDC) which ride at low speed and high torque.. This controller can power our motors beyond 1500W. It will be perfect for our electric wheelbarrow wheels of 3000W and our hub motors up to a power of 5000W. The OZO 60A FOC field oriented sinewave controller integrates offers a whole range of applications. This control system can be powered from 24V to 48V, the higher the voltage of your battery, the more torque you will have and a higher max speed. This controller is compatible with all of our electric industrial and agricultural wheels. It can power main brushless DC BLDC motors of the market. You can use it on industrial trolleys fitted with electric wheels, electric picking cart, wheelbarrows, any agriculture machine or golf cart, baby trolley, handicap vehicles... This driver can be controlled in 2 different ways: - By Throttle (potentiometer 0-5V) allowing to set the speed manually from 0 to top speed. - By pushing button, joystick, switch allowing to reach a constant max target speed (configurable value) with a customizable acceleration ramp. Your Brushless motor must be equipped with Hall effect sensors to work with this controller, but even if one senor is defective the system can still work. Fully tropicalized, waterproof and dustproof, IP64 Technologie : FOC sinewave controller
