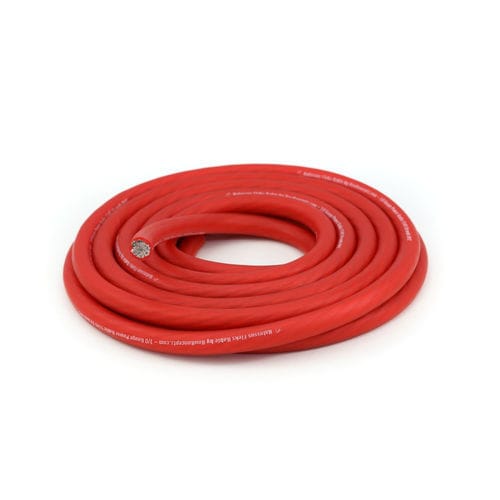

Power cable 000564
strandedtin-plated copperfor battery charger

Power cable - 000564 - OZO - stranded / tin-plated copper / for battery charger
Power cable - 000564 - OZO - stranded / tin-plated copper / for battery charger
Power cable - 000564 - OZO - stranded / tin-plated copper / for battery charger - image - 2
Add to favorites
Compare this product
Go to the OZO website for more information

Characteristics

Type
power
Configuration
stranded
Core material
tin-plated copper
Applications
for battery charger, for solar installations, motor, for electric motors, for electric vehicles, for automotive applications, for marine applications
Number of wire
single-core
Material of the insulation
PVC-sheathed, PVC-insulated
Color of the insolation
red
Nominal voltage

600 V

Temperature

Min.: -40 °C
(-40 °F)

Max.: 105 °C
(221 °F)

Cross-section

50 mm²
(0.08 in²)

Description

DescriptionRed 50 mm² power cable designed for supplying DC electric motors and batteries. High-temperature sheath, ultra-flexible, sold by the meter. Nominal discharge current 400A at 600V. Suitable as a motor cable for powering brushless DC motors up to 20 kW or as a battery cable for electric cars, motorcycles, sailboats, boats, karting, solar installations or car audio.Key featuresFormat: 1/0 gauge (also indicated 55 mm²)Conductors: 5145 tinned strands of oxygen-free copper (OFC)Sheath: Ultra Fleks matte PVC (enhanced flexibility, abrasion and oil resistance, resistant to extreme temperatures)Temperature range: -40°C to 105°CSold by the meter (adjust quantity to required meters)ApplicationsPower supply for brushless DC motors (up to 20 kW)Battery cable for electric cars and electric motorcyclesSailboats, boats, kartingSolar installationsCar audio and other high-power usesCharacteristics / Technical specificationsNominal current: 400A (at 600V)Flame retardant grade: FT2Environmental standard: RoHSResistance: 0.63 Ohm/kmOuter diameter: 14 mmCable cross-section: 50 mm²
