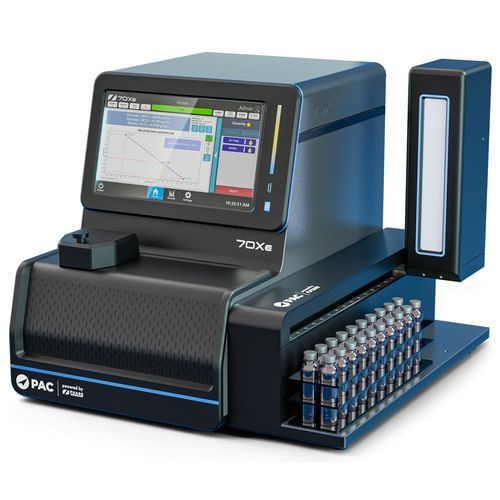

Capillary viscometer 70Xe series

diesel fuellaboratoryfor kinematic viscosity measurement

Product Overview
The 70Xe Series delivers complete flow property testing for jet fuels, diesels, and renewable fuels in one fully integrated analyzer. Designed for high-efficiency laboratories, the platform combines cold properties, viscosity, and density testing with short test times, high precision, and full compliance with ASTM, IP, and DEF STAN specifications. Powered by decades of PAC innovation, the 70Xe Series expands laboratory capability through multiple configurable models including IFA-70Xe, JFA-70Xe, DFA-70Xe, KVD-70Xe and PSA-70Xe. A newly engineered cooling system extends testing capabilities to −100 °C and below, supporting sustainable aviation fuels (SAF), renewable diesel, and biodiesel while maintaining solvent-free operation and high throughput.

Models / Configurations

• IFA-70Xe / JFA-70Xe / DFA-70Xe — Next-generation integrated platform for flow properties testing, designed to simultaneously measure up to six critical properties for jet fuels and diesels.
• KVD-70Xe — Dedicated analyzer for precise viscosity and density measurements.
• PSA-70Xe — Cold properties analyzer (2-in-1 / single function) for freezing point, cloud point, and pour point measurement down to ultra-low temperatures.
• Optional 70Xe 30-position autosampler to automate sample loading, increase throughput, and enable unattended operation.

Key Features

• Flexible configuration: up to six functions in a single analyzer.
• Advanced cooling system enabling renewable fuels testing to −100 °C and below.
• Integrated workflow that maximizes uptime and reduces bench space requirements.
• Rapid testing with results in minutes; phase plots generated automatically for each test to visualize behavior and detect anomalies.
• Intuitive redesigned user interface that reduces training time and simplifies operation.
• Self-contained operation with no external chiller required (integrated Peltier cooling).
• Automatic sample loading available with optional 30-position autosampler.

Software
PACe compatibility provides real-time instrument monitoring, intelligent asset management, and proactive maintenance insight; enables instrument health visibility, throughput optimization, and consistent integration with PAC instrument portfolio.

Consumables (examples)

• DRD-601P Dryer desiccant (single pack) for analyzer purging system
• DRD-605P Dryer Desiccant, Package of 5
• DRD-610P Dryer Desiccant, Package of 10
• DRP-06C Dryer Sacs, Sample, recommended for jet fuel freeze point tests, Package of 600
• Screen Protectors, 70Xe Touch Screen, Package of 5
• JFA-30G Vials, Glass, 30 mL, for 70Xi/JFA models, Package of 500
• LABEL-SL Labels for Label Printer (2 rolls/box)

Documentation
Title | Description | PDF
Brochure | 70Xe Brochure | 70Xe Brochure_A4.pdf
Flyer | Why Labs are Upgrading from 70Xi to 70Xe | 70Xe-Upgrade-Flyer-A4.pdf
App Note | 70Xe Jet Fuel App Note | PAC_JFA-70Xi_for_Sustainable_Aviation_Fuel.pdf
Brochure | PSA 2-in-1 Brochure | 70Xe-PSA-2-in-1_Brochure.pdf
Brochure | IFA / JFA / DFA Brochure | 70Xe-IFA-JFA-DFA-Brochure.pdf
Brochure | KVD Brochure | 70Xe-KVD-Brochure.pdf

Caractéristiques / spécifications techniques

• Test Methods & Precision: Freeze Point — ASTM D5972 / IP 435 / SH/T 0770; ASTM D2386 / IP 16 / ISO 3013 equivalent. Cloud Point — ASTM D5773 / IP 446; ASTM D2500 / IP 219 / ISO 3015 equivalent. Pour Point — ASTM D5949 / SH/T 0771; ASTM D97 / IP 15 / ISO 3016 equivalent. Kinematic Viscosity — ASTM D7945 / IP 641 / ISO 18335; ASTM D445 / IP 71 / ISO 3104 equivalent. Density — ASTM D7777; correlation with ASTM D4052 / IP 365 / ISO 12185.
• Detection Technology: Cold Properties — Patented Diffusive Light Scattering (DLS). Viscosity — constant pressure with horizontal capillary measurement.
• Sample Temperature Range: −100 °C to +70 °C.
• Test Duration: Cold Properties + Viscosity + Density — as low as 15 minutes; Viscosity + Density — as low as 10 minutes; Cold Properties — as low as 5 minutes.
• Operator Time: < 1 minute per test.
• Cooling System: Integrated Peltier device cooling system; no external cooling bath needed; ultra-low cooling below −100 °C for renewable fuels testing.
• Operation: Self-contained system, compact footprint options (KVD for viscosity/density only), solvent-free operation, designed specifically for jet fuel and diesel laboratories, optional autosampler for high-throughput and unattended operation.
