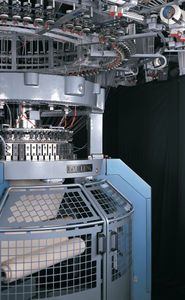

Double jersey knitting machine KDB

industrial

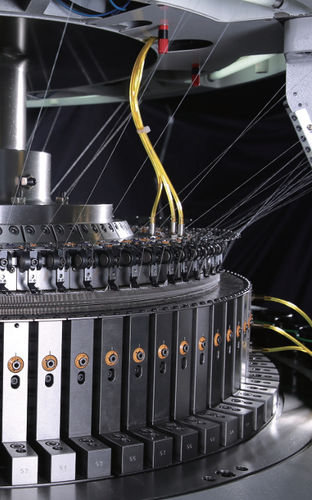

The Pai Lung’s K series represents a remarkable new concept that draws on highly original thinking in design and clever new advances in engineering. Internally, it applies Pai Lung’s latest Knitel technology to a double jersey system in a redefined knitting head that's no longer than a interlock machine only. The main gear transmission of dial and cylinder in the double jersey machine are the oil bathed lubrication. This design can deduce the running noise, energy loss, and part worn out, also provide higher operating RPM in production. The K frame design can separate the frame oil and waste needle oil effectively for easy maintenance. The housing grooving structure can afford the longterm period of any heavy loading from the take up system. Considered the various yarn material applications, the knitting head of Pai Lung interlock machine can offer the best solution for different request in knitting, like fine polished and hardness cam, the feeding angle of the yarn carrier, and yarn tension in needle knock over. The cam measuring screw is based on the driving principle of two closed faces. Accurate indication is able to effectively give knitting operator in pattern and weight reference. Depending on the pattern structure in the world different market, Pai Lung has several feeder number models, including PL-KD2B, PL-KD2.5B PL-KD3B. With optional pattern cams supply, the fabric structure can be easy to reach the pique or complex pattern request. The interlock machine can be from 18 gauge to fine gauge 42 gauge. In 2+2 cam track type, fabrics not only plain interlock fabrics, also punte de roma, eight lock double pique, single pique, wet ripple, and reversible etc.
