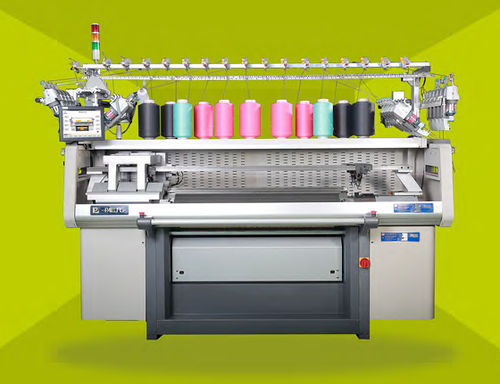

Double jersey knitting machine IFP093

industrial

Gauge - 14G Knitting Width - 36" (91cm) Carriage/System - Single carriage three Systems. Knitting Function - Knit, Tuck, Miss and simultaneous Transfer, front or back, regardless of carriage direction. Knittable Pattern - Inverse plating pattern with intarsia pattern Needle Sélection - Full-Jacquard needle sélection bysolenoid system. Stitch Density - Stitch density controlled by stepping motors with adjustable levels which can be stored in 99 levels. Knitting Speed - Max l.Om/sec. knitting speed varies according to gauge and knitting conditions. Variably adjustable speed levels. 16 additional programmable speeds. Racking System. - Servo motor with bail screw racking system. Max4-inch racking left and right side each. 1/2 and 1/4 pitch also available from any position. 8 programmable speeds. Sinker System - Moveable sinker Transmission System - Belt driven transmission system via AC servo motor. Yarn Cutter and GrippersSystem - 2 set of one yarn cutter and two grippers. Yarn Carriers - 16 carriers Trail - 4 trails Side Tension 16 unitson both sides.
