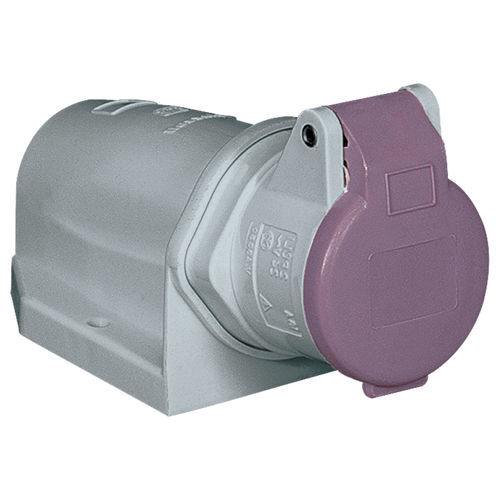

Built-in electrical socket 471002standardIP44CEE
Add to favorites
Compare this product
Characteristics
- Mounting
- built-in
- Protection level
- standard, IP44
- Other characteristics
- CEE, IEC
- Current
16 A
- VAC
24 V, 500 V
Description
Net weight - 0.20KG
Min order quantity - 1
EAN Code - 8014950031900
Gross Weight - 0.21KG
EN IEC 63000:2018
EN 60309-1:1999/A1AC:2014
EN 60309-2:1999/A1:2007
EN 60309-2:1999
EN 60309-1:1999
EN 60309-1:1999/A1:2007
EN 60309-2:1999/A2:2012
EN 60309-1:1999/A2:2012
2001/95/EC (GPSD)
2012/19/EU (WEEE)
2011/65/EU (RoHS)
Electric system - PR16A_2P.png
Tightening diameter - 10,5÷21,5 mm
Max. Amb. Temp. - +50°C
Max conductor section - 2,5 mm²
Storage room temperature MAX - +70°C
Storage room temperature MIN - -30°C
Min conductor section - 1 mm²
Shock resistance - IK08 according to IEC/EN 62262
Terminals type - Screw - direct tightening
Min. Amb. Temp. - -25°C
Colour - Grey RAL 7042
Frequency - 50/60Hz
IP Protection degree - IP44
Poles - 2
Manufacturing material - High resistance technopolymer
Execution - Wall mounting
Modules Number - -
Flange dimensions - -
Hole type - Pg21
Standard plug-socket - IEC 60309-2
