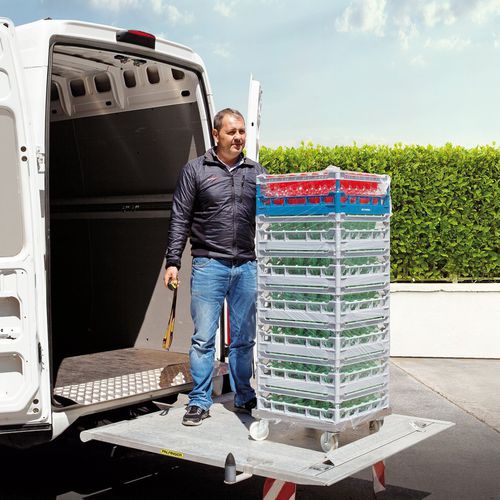

Standard lift gate MBB C 500

van

• Individual installation kits for all common van types • Fast, simple attachment ≥ Optimum relationship between lifting capacity and weight • Removable ball-head coupling optionally available • With aluminium platform • Equipped with a roll stop (900 mm) and bridging plate as standard • Also available as a half-sized platform (800 mm) • Mercedes-Benz Sprinter 3/5 • Volkswagen Crafter 30/35/50 • Iveco Daily • Nissan NV 400 / Renault Master / Opel Movano • Nissan Primastar / Renault Trafic / Opel Vivaro • Citroen Jumper (Relay) / Fiat Ducato / Peugeot Boxer • Further vehicle types on request Main beam - 120 x 80 mm Lifting gear hydraulics - 1 lifting cylinder / 1 tilting cylinder Platform overlap with floor - - Lift arm pitch /Lift arm length - 510 mm Load centre - lengthwise - 600 mm Load centre - across center - Central 50% of rated load on one side Inclination angle of the platform - +90° to -10°
