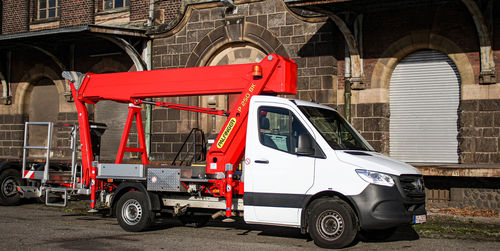

Truck-mounted telescopic boom lift P 250 BK

diesel enginefor constructionforestry

The P 250 BK is lightweight, safe and space-saving. Not only do the workman basket and telescopic system with aluminium extrusion profiles keep the weight low, they also make it extremely robust. • Lifting and slewing of the main boom without stabilisers available as standard • Stabiliser operation from the base for easy and safe support • Robust aluminium workman basket with 250kg cage load and integrated anti-squeeze protection function in the knee rail • Automatic support stabilising with wheel clearance monitoring • Three stabiliser configurations: narrow (in contour), wide (fully extended) and one-sided broad positioning of the stabilisers, as well as automatic release of the associated working range • Flat substructure under the workman basket allows users to get as close to obstacles as possible Max. basket floor height - 22.7 m Slewing range of basket - +/- 90° Max. stabilizer spread - 3.6 m Operating angle of working arm - 185° max. basket load - 250 kg Workman basket - breadth / length / height - 1,4 x 0,7 x 1,1 m Rotation angle of turntable - 500° Maximum stabilisation gradient - 5° Height in transport position - 2.90 m Width in transport position - 2.22 m Overall length - 6.87 m
