Pallet AGV PALOMAT® AGV

forklift

NEW VERSION: More flexible and user-friendly – ready to deliver data insights and built to exceed market safety standards.

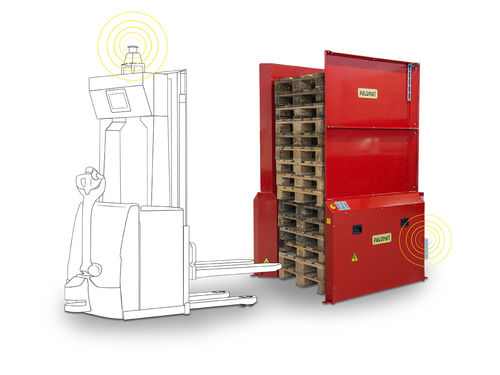

PALOMAT® AGV – Completely automatic pallet handling for AGVs
With PALOMAT® AGV, you can automate the handling of empty pallets and create a consistent pallet flow between your AGVs and production, warehouse or packaging areas.
PALOMAT® AGV is designed as the perfect add-on for all brands of driverless forklift trucks. By allowing the PALOMAT® and AGV to communicate directly, empty pallets can be automatically stacked, destacked, supplied and removed – without manual pallet handling.
The result is a more efficient pallet flow, better utilisation of your AGVs and less time spent on repetitive pallet handling.

Automatic communication with your AGV
PALOMAT® AGV is delivered with an interface including OPC UA signals for external equipment and a preinstalled program with the necessary signals for communication between the pallet magazine and the AGV.
When destacking, PALOMAT® AGV automatically prepares a single pallet at floor level for collection. When stacking, the AGV delivers empty pallets one by one, and PALOMAT® automatically builds the pallet stack.
When the PALOMAT® is empty or full, it signals the AGV, enabling the pallet flow to continue automatically.
Multiple AGVs can communicate with the same PALOMAT®, and the pallet magazine can also be used manually with a hand pallet truck when required.

Flexible pallet handling
PALOMAT® AGV handles all 4-way pallets in wood, plastic and metal.
The adjustable gripper position makes it easier to adapt the PALOMAT® to different pallet heights, while the extended lifting stroke provides greater flexibility and user-friendliness.
The built-in light curtain increases the safety zone around the machine and supports safe pallet handling in environments where automated and manual workflows meet.

Get valuable insights into your pallet flow
The web browser gives you access to operational data, including cycles, signal status and fault history.
This provides greater insight into how PALOMAT® AGV is utilised and supports faster troubleshooting and optimisation of your pallet flow.

Your benefits with PALOMAT® AGV
• Completely automatic pallet flow with AGVs
• Communicates with all brands of driverless forklift trucks
• Eliminates manual pallet handling
• Better utilisation of AGVs
• Optimised internal logistics
• Increased efficiency and productivity
• Consistent stacking and destacking at floor level
• More order and structure
• Valuable operational data for troubleshooting and optimisation
• 100% electrically powered
• Plug and play installation

Technical details
• Control: Siemens S7-1200
• Interface: OPC UA for external equipment
• Light curtain and sensors: SICK
• Actuator: Linak
• Power supply: 220–240 VAC, 50 Hz, 1P+N+PE
• Capacity: 15 pallets / 500 kg
• Handles all 4-way pallets in wood, plastic and metal
• Software: Preinstalled program for communication with external equipment
