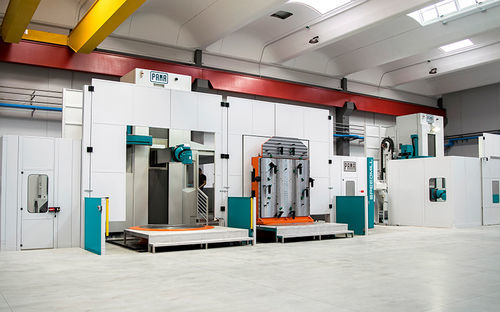

3-axis CNC milling machine SPEEDMILL series

horizontalcolumn typefor large workpieces

Overview
PAMA Speedmill horizontal milling machines are engineered for machining medium to large components where horizontal processing is preferred. The design prioritises vibration damping, dynamic axis response, high spindle speed and part dimensional precision.

Design and construction
The machines feature a thermally symmetric column with a centrally mounted headstock and roller guideways on the X and Y axes to exploit axis dynamics. The ram is guided inside the headstock by hydrostatic pads and is equipped with a real-time feedback system to compensate thermal elongation, improving positional accuracy and rigidity at the source of vibration.

Thermal control and lubrication
CNC attachment heads are thermally stabilised via controlled fluid recirculation. To attain high speeds, precision and wear resistance of kinematic units, lubrication is provided by air‑oil or climate‑controlled oil recirculation systems.

Configuration options

• a wide assortment of milling or turning tables
• a wide assortment of tool magazines and tool and CNC attachment head magazines

CNC control
The range can be specified with Siemens, Heidenhain or Fanuc CNC systems according to production requirements.

Technical information (summary)
X axis stroke (Column): 5000 mm
Y axis stroke (Headstock): 2000 - 5000 mm
Z axis stroke (Ram): 1200 - 2000 mm
Ram section: 430x430 - 500x500 mm
Spindle transmission: Direct Drive
Spindle power (S1): 66 - 90 kW
Spindle torque (S1): 822 - 2494 Nm
Spindle speed: 4000 - 6000 rpm
Universal head - Spindle power (S1): 37 / 50 kW
Universal head - Spindle torque (S1): 1000 / 1200 Nm
Universal head - Spindle speed: 6000 rpm
Universal head - A/C axis positioning: 360000 n°
X, Y, Z axes rapid feed: up to 35000 mm/min

Characteristics / technical specifications

• Thermally symmetric column with centrally mounted headstock
• Roller guideways on X and Y axes
• Ram guided by hydrostatic pads with real-time thermal compensation
• Thermal stabilisation of CNC attachment heads via controlled fluid recirculation
• Lubrication by air‑oil or climate‑controlled oil recirculation systems
• Ram travels (Y) up to 5000 mm; Ram Z travels between 1200 and 2000 mm
• Ram section options: 430x430 mm; 500x500 mm
• Spindle speeds: 4000 - 6000 rpm; universal head up to 6000 rpm
• Spindle power range: main spindle 66-90 kW; universal head 37/50 kW
• Spindle torque ranges up to 2494 Nm
• Rapid feed up to 35000 mm/min
