Overview

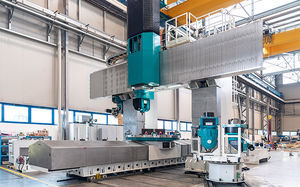

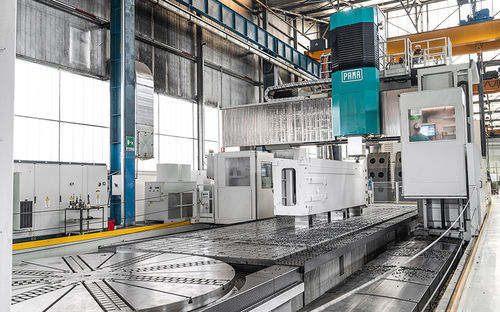

The medium-to-large VERTIRAM GT vertical gantry machining centers by PAMA deliver high spindle speeds, rigidity and damping to meet demanding vertical machining requirements for small to very large components. Configurations range from dynamic, high-speed heads to high-torque, high-damping solutions for heavy cutting. Machines can be fitted with a mobile crossrail to optimise spindle-to-workpiece distance.

Design and construction
Structures are engineered using finite element analysis to optimise mass distribution, static/dynamic rigidity and thermal symmetry. The core element is the ram guided within the headstock by hydrostatic pads, featuring a real-time compensation system for thermal elongation to maintain precision at the source of vibration and load.

Ram solutions (configurable)

• ram with direct driver
• ram with boring bar
• ram with integrated C-axis

Customization and options
PAMA offers extensive configuration options: milling or turning tables, various tool magazines, CNC-driven attachment heads and mobile crossrail for expanded versatility and tailored cycle layouts.

Control systems
Available CNC controls: Siemens, Heidenhain, Fanuc — selectable to match process and shop-floor standards.

Technical information (summary)
Horizontal clearance (between columns): 3100 mm – 10100 mm
Vertical clearance under ram face: 2350 mm – 6000 mm
Ram stroke: 1600 mm – 4000 mm

Working area (selected values)
X axis (gantry) example stroke: 5000 mm (pattern + N x 1000 mm as per product table)
Y axis (headstock) stroke: 4100 – 11600 mm
Z axis (ram) stroke: 1500 – 4000 mm
V axis (crossrail, option) stroke: 1100 – 3600 mm

Floor plates
Plate width: 2000 – 9000 mm

Turning table
Table / pallet diameter: Ø1250 – Ø8000
Load capacity: up to 300000 kg
Turning speed: up to 350 rpm

Headstock – Ram with driver (selected values)
Spindle transmission: Direct Drive
Spindle power (S1): 66 – 82 kW
Spindle torque (S1): 1175 – 2494 Nm
Spindle speed: 4000 – 6000 rpm

Headstock – Ram with integrated C-axis (selected values)
Spindle transmission: Direct Drive / 4 ranges
Spindle power (S1): 66 – 103 kW
Spindle torque (S1): 1175 – 10730 Nm
Spindle speed: 4000 rpm (typical)

Headstock – Ram with boring bar (selected values)
Boring spindle diameter: 130 – 160 mm
W axis stroke (boring spindle): 800 mm
Spindle transmission: Direct Drive
Spindle power (S1): 78 – 82 kW
Spindle torque (S1): 1743 – 2494 Nm
Spindle speed: 4000 – 5000 rpm

Linear axes features
X, Y, Z, W rapid feed: up to 30000 mm/min
V axis rapid feed: up to 4000 mm/min

Technical specifications

• Model name: VERTIRAM GT
• Brand: PAMA
• Horizontal clearance: 3100 – 10100 mm
• Vertical clearance under ram face: 2350 – 6000 mm
• Ram stroke: 1600 – 4000 mm
• X axis stroke (gantry): example 5000 mm (+ N x 1000 pattern)
• Y axis stroke (headstock): 4100 – 11600 mm
• Z axis stroke (ram): 1500 – 4000 mm
• V axis stroke (crossrail option): 1100 – 3600 mm
• Floor plate width: 2000 – 9000 mm
• Turning table diameter: Ø1250 – Ø8000
• Turning table load capacity: up to 300000 kg
• Turning speed: up to 350 rpm
• Spindle power (depending on configuration): 66 – 103 kW
• Spindle torque (depending on configuration): 1175 – 10730 Nm
• Spindle speeds (typical): up to 6000 rpm
• Boring spindle diameter (boring bar option): 130 – 160 mm
• Linear axes rapid feed: up to 30000 mm/min (X,Y,Z,W); V axis up to 4000 mm/min
• Available CNC controls: Siemens, Heidenhain, Fanuc
