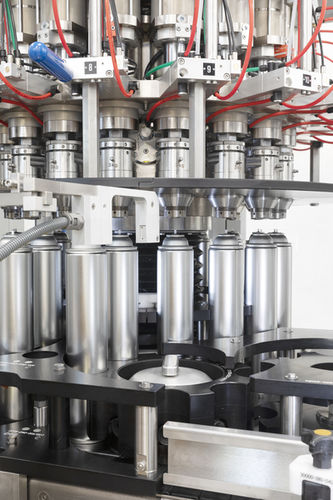

Automatic crimping machine 2018/200

pneumaticrotaryvacuum

Centomat rotary stations are suitable for the filling and sealing of products in large series. The individual process modules may be combined to form a high-performance system. Under certain conditions the process module may be installed in an existing filling line. The Centomat crimping station closes all standard 1" or 20 mm valves. 100 - 600 containers per minute According to requirement 6, 9, 12, 18 or 24 crimpers can be mounted. In the case of sealing under vacuum, the effective capacity dépends on the vacuum time.. Height of container 80 - 260 mm Diameter of container 35 - 66 mm Available crimping heads - 1" valves 2002/700 - Valves 20 mm 2002/720 - 1" valves for PET 2002/740 - 1" valves vacuum 2002/750 - 1" valves Undercup Rotary station with continuous crimping. When the containers, inserted with valves, are in position beneath the crimping heads, closing starts. The crimping heads move to the containers and the crimper crimps/closes the valve. After crimping, the crimping heads are raised from the containers. The outlet star wheel pushes the crimped containers onto the conveyor belt, which transports them to the next machine. Quick-changeable guides guarantee simple, rapid conversion of the rotary station to the next product sériés.
