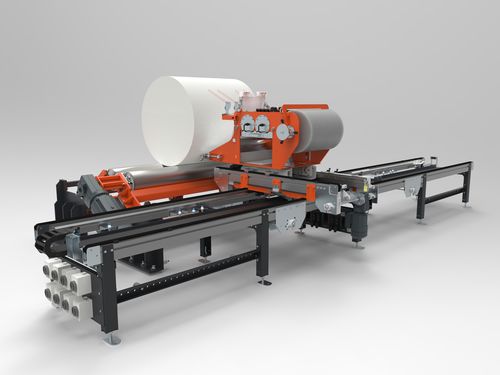

Radial stretch wrapping machine ARES

horizontalfor rollswith rollers

Roll packaging with the know-how of PAMMINGER radial stretch wrapping machines. All our machines are equipped with the PAMMINGER Vario-Power-Stretch-System. This enables our customers to save up to 30% on stretch film compared to conventional machines on the market. Our radial wrapper – ARES stretch wrapps lying rolls on the roller circumference. Possible product dimensions: diameter 350 – 2000 mm roller width from 200 – 3500 mm - unique capacity - low-maintenance - film savings of up to 30% Support roller system Two traversing units, each with one chrome-plated carrying roller. A carrier roller is motor-driven via a frequency converter. After the paper roll has been centered and the winding process has started, the two travel units move together and lift the paper roll off the transport system. The driven carrier roller begins to rotate at the set speed on the display and the roll is stretched with film around the circumference. After completion of the winding process, the carrier roll stops and the film is now separated. Shortly before the paper is lowered, it turnes again. This ensures a firm hold of the film. Film carriage Of course it is equipped with a quick film insertion system. Opened with two handles, pulling the film hrough without tedious threading and you are done. Two separately controllable motors determine the incredible performance of the PAMMINGER pre-stretch system. Our VARIO-POWER-STRETCH pre-sretching enables an elongation to 500% with good foil qualities. This corresponds to a foil saving of up to 30%.
