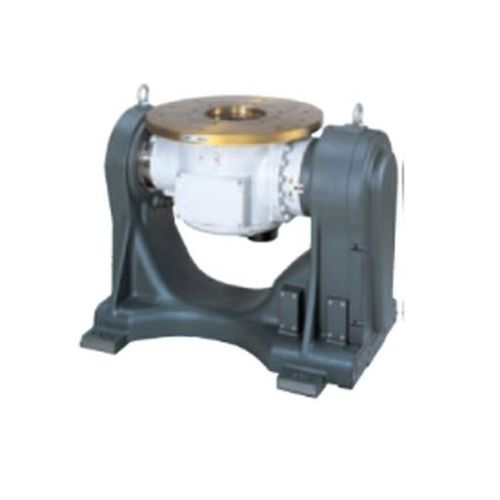

Manual positioner RJC seriesrotary1-axiscustom-made
Add to favorites
Compare this product
Characteristics
- Type
- manual
- Orientation
- rotary
- Number of axes
- 1-axis
- Other characteristics
- custom-made
- Payload
300 kg, 500 kg
(661.387 lb, 1,102.311 lb)- Rotational speed
27 rpm, 31 rpm
(170 rad.min-1, 195 rad.min-1)- Weight
285 kg
(628.32 lb)
Description
Panasonic's series of Tilt-Rotate Positioners are capable of handling payloads up to 500kg.
Max Speed Rotation - 190°/s (31 r/min)
Max Speed Tilt - 125.5°/s (20 r/min)
Operating Range Rotation - -3600°+3600° (with multi-rotation dat a reset function)
Operating Range Tilt - -135° to +135°
Allowable Moment Rotation - 323N · m
Allowable Moment Tilt - 882N · m
Position Repeatability - +/-0.05mm(R=250mm)
Hollow Shaft Diameter - 55mm
Allowable Welding Current - 500 A 60% Duty Cycle
Max Speed Rotation - 165°/s (27 r/min)
Max Speed Tilt - 90°/s (15 r/min)
Operating Range Rotation - -3600°+3600° (with multi-rotation dat a reset function)
Operating Range Tilt - -135° to +135°
Allowable Moment Rotation - 392N · m
Allowable Moment Tilt - 1274N · m
Position Repeatability - +/-0.05mm(R=250mm)
Hollow Shaft Diameter - 55mm
Allowable Welding Current - 500 A 60% Duty Cycle
