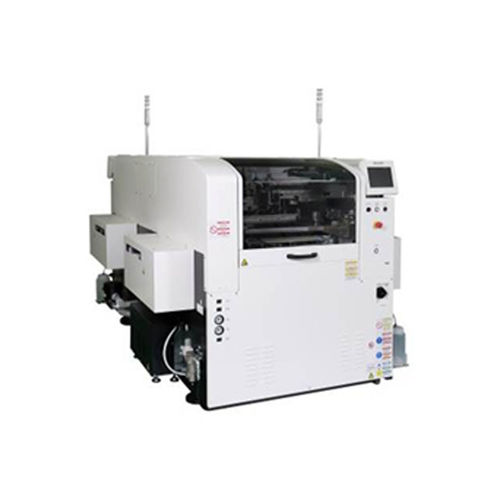

Automatic screen printer SPV-DC

colorSMTelectropneumatic

The SPV-DC enables high efficiency dual lane production in a compact package. Achieve compact dual-lane and high-efficiency production while cutting operating costs. Paperless cleaning technology allows for improved overall quality in an integrated line using Panasonic mounters. • Paperless cleaning cuts down on paper and solvent use • Perforated pot-type automatic solder supply allows for labor savings and uninterrupted operation • PCB pickup blower (switch type) creates airflow pathways from metal mask to PCB • Mask inspection alleviates mask aperture clogging and solder bleed • Solder inspection prevents solder displacement, bridging, streaking, and bleeding PCB Dimensions (mm) * - L 50 x W 50 to L 350 x W 300 [*1] PCB Exchange Time * - 13.0s (6.5s/PCB) Including transfer, positioning, recognition, each-time cleaning. Printing & cleaning conditions: Our recommended conditions (PCB dimensions L 250 x W 165) [*2] Repeatability - 2 Cpk ± 5.0 μm 6 σ The repeatability of same PCB Equal to ± 5.0 μm ± 3 σ (or ±2.5 μm ±1.5 σ) Screen Frame Dimensions (mm) * - L 736 x W 736, L 650 x W 550, L 550 x W 650, L 750 x W 750, L 584 x W 584 [*3} Electric Source * - 1-phase AC 200, 220, 230, 240 V ±10V Max. 4.0 kVA [*4] Pneumatic Source * - 0.5 MPa, 560 L / min (A.N.R.) [*5] Dimensions (mm) * - W 1,650 x D 2,446 x H 1,500 (maximum protrusion D 2,528) [*6] Mass * - 2,650 kg [*7]
