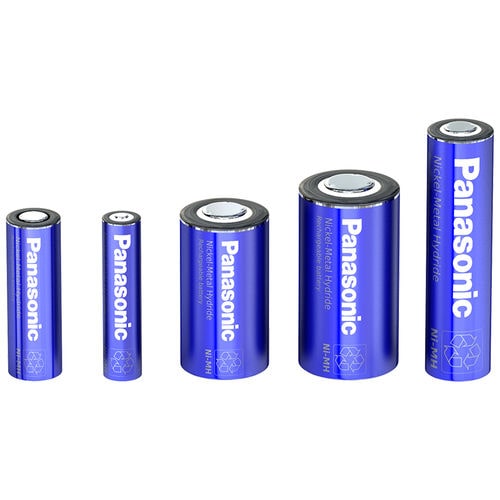

Ni-MH battery BK series
AA typeAAA typefor medical applications

Ni-MH battery - BK series  - Panasonic Industry Europe GmbH - AA type / AAA type / for medical applications
Ni-MH battery - BK series  - Panasonic Industry Europe GmbH - AA type / AAA type / for medical applications
Add to favorites
Compare this product

Characteristics

Type
Ni-MH
Configuration
AA type, AAA type
Applications
for medical applications, for emergency lighting, solar
Other characteristics
extended temperature range
Load capacity

Min.: 0.7 Ah

Max.: 3.7 Ah

Length / diameter

Min.: 13.8 mm
(0.5 in)

Max.: 18.9 mm
(0.7 in)

Height

Min.: 41.5 mm
(1.6 in)

Max.: 67.5 mm
(2.7 in)

Weight

Min.: 18 g
(0.63 oz)

Max.: 60 g
(2.12 oz)

Description

These Ni-MH batteries can be used across a wide range of temperature (-10 to +60°C) and will deliver a long service time when using intermittent charge. Our infrastructure type batteries are recommended for use in applications such emergency lighting, vending machines and as a back-up for base stations. Last but not least, they are ideal to replace nickel cadmium (Ni-Cd) batteries. Features Expected lifetime of these back-up batteries is about 4 to 6 years Excellent charge characteristics at high temperature (60°C) Long lifetime when using intermittent charge Wide operating temperature (-10 to 60℃) Small size and light weight Applications Ticketing machines POS systems Solar window shutters Shavers etc. How to read the model numbers used for Ni-MH batteries The model numbers are normally indicated using two upper case English letters and three or more digits, as shown in the example. This numbering system gives the user information about the battery capacity, the dimensions and so on. 70 - multiply this number by 10 to obtain the rated capacity (some exceptions)

VIDEO
