industrial refrigerator / cabinet / benchtop / horizontal
TRD series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

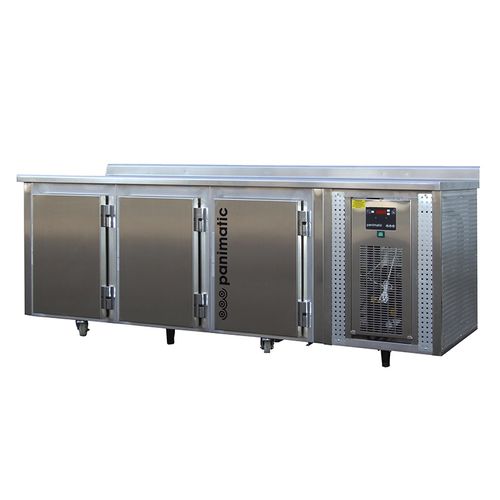

industrial refrigerator industrial refrigerator - TRD series


  • Applications:


  • Configuration:

    cabinet, benchtop, horizontal


Benchs 2 to 8 doors
With removable modules for 400x600 pastry trays
Without top or with grade 304 stainless steel or granite 30/40 mm top.
Interior and exterior BENCH in stainless steel on feet and castors
Fixed angle bars with 60 mm spacing on racks which are easily removed for cleaning
Injected polyurethane insulation, 50 mm
Standard model: hinging on the right.
Rounded interior angles
Stainless steel refrigerated top
Positioning of the refrigeration unit to the right or left
Integral control panel for a remote refrigeration unit
240V single phase

Depth 815 mm without door - Depth 875 mm with door - Depth 880 mm with door and stainless steel top
Height: 855 mm height, of which feet: 105 mm
Module width: 560 mm - Width of refrigeration unit housing: 560 mm
2 DOORS: length 1,805 mm with housing - 1,240 mm without housing
3 DOORS: length 2370 mm with housing - 1805 mm without housing
4 DOORS: length 2,935 mm with housing - 2,370 mm without housing
5 DOORS: length 3500 mm with housing - 2935 mm without housing
6 DOORS: length 4,065 mm with housing - 3,500 mm without housing
7 DOORS: length 4,630 mm with housing - 4,065 mm without housing
8 DOORS: length 5,195 mm with housing - 4,630 mm without housing

Back plate in stainless steel or granite
Air and water cooled refrigeration unit
Water-based refrigeration unit
sound proofed refrigeration unit
tropicalised refrigeration unit
remote refrigeration unit.
Water recovery trough with resistance
