dot peen marking machine / hand-held
M8-IP

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

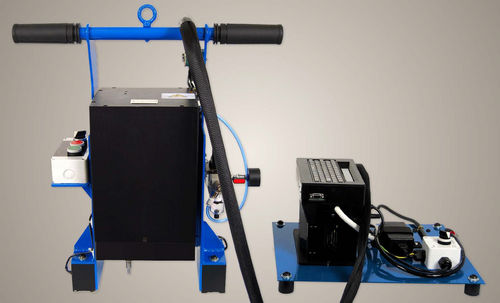

dot peen marking machine / hand-held dot peen marking machine / hand-held - M8-IP
{{requestButtons}}

Characteristics

  • Technique:

    dot peen

  • Configuration:

    hand-held

  • X travel:

    25 mm, 50 mm, 120 mm (1 in)

  • Y travel:

    60 mm, 90 mm, 120 mm, 160 mm (2 in)

Description

Heavy duty system for deep marking on plate, beams, and other heavy products
Magnets hold the stamper in place during marking

The M8-IP Portable Stamper is designed to work in the harshest manufacturing environments. The marking head is completely sealed, providing IP65 protection from dirt, dust, and fumes. The electromagnetic base allows the stamper to be held securely in place during the marking cycle.

The M8-IP utilizes a 6mm diameter heavy duty stylus for deep, wide marking. The high speed electrovalve, which is placed inside of the stamper housing, enables the impact frequency of the stylus to be adjusted for marking different types of substrates. The stamper can mark text, date codes, and serial numbers using your choice of 21 fonts, including 2D Data Matrix codes. In addition, the standard software allows for importing of graphic files for marking logos or special symbols.
