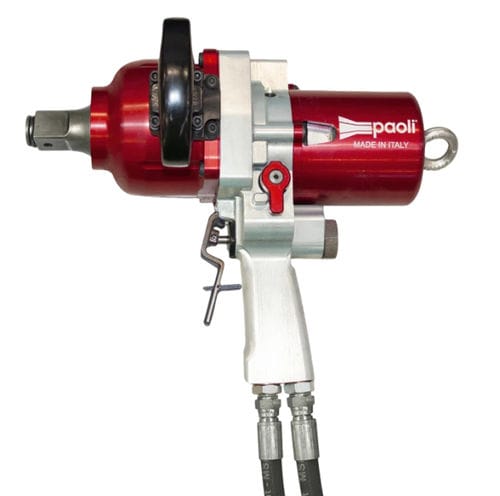

Hydraulic impact wrench DPH 351 M

1"for heavy-duty applicationsaluminium

Description
The DPH 351 M is designed for underwater and surface applications that require high torque when compressed air is not available. Compact and suitable for demanding environments, it delivers controlled torque and is compatible with hydraulic supply systems.

Ideal for

• Underwater operations
• Mechanical and industrial workshops
• Rail infrastructure and applications
• Oil & gas
• Mining
• Cold and extreme work environments

Main features

• Striker mass type: 3-jaw
• Shaft type: ring-type, through-hole
• Suitable for underwater use
• Handle: 7075 aluminium
• Motor housing designed for heat dissipation

Versions available

• 1″

Technical details

• Weight: 8.8 kg (19.4 lbs)
• Overall length: 323 mm (12.7 in)
• Maximum torque: 5000 Nm (3688 ft-lb)
• Recommended flow: 30 l/min
• Connection: 1″

Specifications / technical characteristics

• Striker mass type: 3-jaw
• Shaft: ring-type, through-hole
• Designed for underwater use
• Handle material: 7075 aluminium
• Motor housing optimized for heat dissipation
• Weight: 8.8 kg
• Overall length: 323 mm
• Maximum torque: 5000 Nm
• Recommended flow rate: 30 l/min
• Connection: 1″
