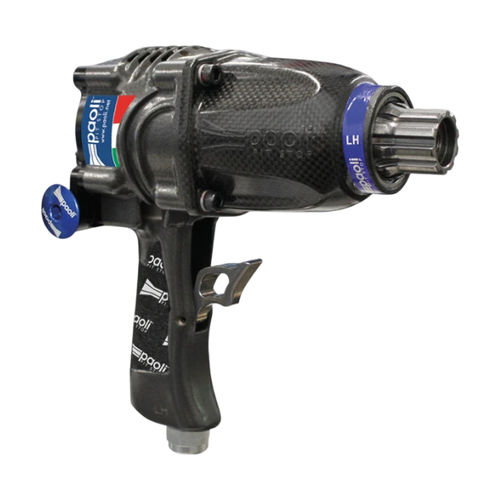

Pneumatic impact wrench DP6000 SPLINE

3/8"aluminiumcarbon

Product overview
From Paoli’s R&D and collaboration with leading racing teams comes the DP6000 SPLINE spline-drive impact wrench. The spline drive differs from a square-drive impact wrench by the shape and number of teeth that connect the tool to the socket. The increased number of contact points improves torque transmission and reduces load per contact, resulting in higher effective torque and longer component life.

Highlights

• Patented profile
• Patented SPLINE system

Available Versions

• Spline drive, Carbon cover, Classic handle
• Also available: LH, RH, UH versions
• 2-port and 3-port options
• Aluminium cover option
• 90° handle version

Applications

• INDYCAR
• ENDURANCE
• Captive nut fastening
• Loose nut fastening
• Single nut operations

Technical Details

• Weight: 3.7 kg (8.15 lbs)
• Size: 198 mm (7.79 in)
• Maximum Torque: 4200 Nm (3100 ft-lb)
• Operating Pressure: 25 bar (362 psi)
• Connection: 3/8" BSP
• Drive connection: Spline

Specifications

• Weight: 3.7 kg (8.15 lbs)
• Size: 198 mm (7.79 in)
• Maximum Torque: 4200 Nm (3100 ft-lb)
• Operating Pressure: 25 bar (362 psi)
• Connection: 3/8" BSP
• Drive connection: Spline
