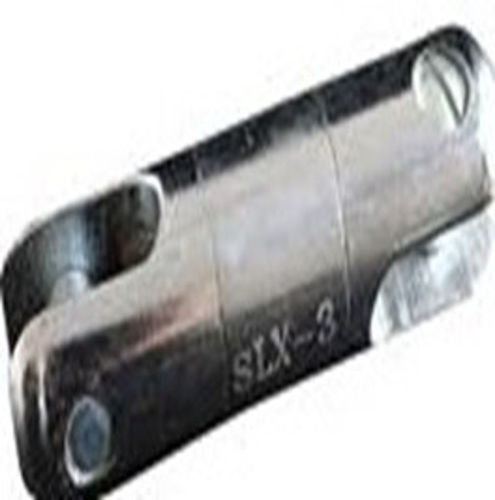

Cable pulling swivel PS-XL series

Cable Pulling Swivel Performance and characteristics - Suitable for connecting wire rope and net cover connector when pulling wire or underground cable in transmission and transformation lines and releasing twisting force of wire rope. Made of aluminum alloy tools, high strength, light weight. - Can be smoothly through the pulley and tension machine, traction machine and other equipment. Model Specifications: - PS-XL-1: Rated load 5KN, Outer diameter φ18mm, Groove width 8mm, Weight 0.2kg - PS-XL-2: Rated load 10KN, Outer diameter φ22mm, Groove width 12.5mm, Weight 0.4kg - PS-XL-3: Rated load 30KN, Outer diameter φ30mm, Groove width 14.5mm, Weight 0.65kg - PS-XL-4: Rated load 50KN, Outer diameter φ42mm, Groove width 17mm, Weight 1.5kg - PS-XL-5: Rated load 80KN, Outer diameter φ55mm, Groove width 22mm, Weight 2.4kg - PS-XL-6: Rated load 130KN, Outer diameter φ60mm, Groove width 24mm, Weight 3.5kg - PS-XL-7: Rated load 180KN, Outer diameter φ72mm, Groove width 30mm, Weight 7.2kg - PS-XL-8: Rated load 250KN, Outer diameter φ65mm, Groove width 36mm, Weight 8.0kg Technical Specifications: - Material: Aluminum alloy - Application: Cable pulling, wire rope connection, underground cable installation - Models available: PS-XL-1 to PS-XL-8 - Rated load: 5KN to 250KN - Outer diameter: 18mm to 72mm - Groove width: 8mm to 36mm - Weight: 0.2kg to 8.0kg
