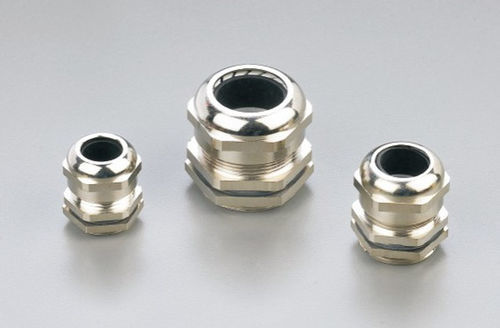

Nickel-plated brass cable gland M series

waterproofIP68

Copper Cable Fixed Head - Material: Body: Nickel – Plated Brass - Seal: PA66, Sealing: NBR - Certification: CE, ROHS, REACH - Protection rating: IP68 - Operating Temperature: Static Condition: -40°C to 100°C, short–time 120°C - Dynamic condition: -20°C to 80°C, short time 100°C. - Thread length: Standard thread type is suitable for equipment with internal thread or with thin plate. Longer thread type is suitable for thick plate. - Feature: Special design of the clamp and seals, extremely easy installation, suit for wide range of cable, strong stretching resistance, waterproof, dust proof, resist to salt, acid, alcohol, grease, and other solvent. - Application: Fix the cable gland on the plate, insert cable through the assembled gland and tighten gland locknut until cable is secured. - Notes: Customization is available. Availability: Usually ships in 24 hours Brand: Paprsky Customization: Available Related certifications: CE, ROHS, REACH Protection: IP68 Operating temperature: Static -40°C to 100°C (short-term 120°C), Dynamic -20°C to 80°C (short-term 100°C) Material: Nickel-plated brass body, PA66 seal, NBR sealing Features: Waterproof, dustproof, resistant to salt, acid, alcohol, grease, and other solvents; strong stretching resistance; easy installation
