Dust separator filter CA

airindustrialcontinuous

Overview

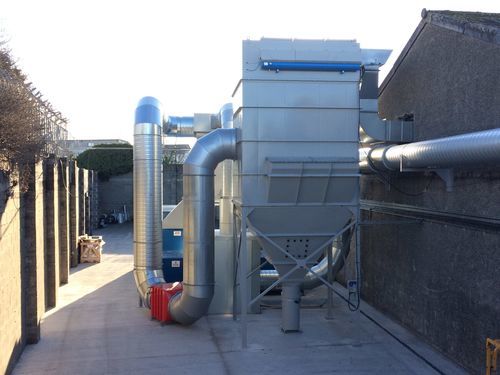

Paramount CA Reverse Jet Filter units are engineered to provide continuous air cleaning for industrial operations handling large volumes of fibrous and fine dust. The systems integrate anti-static filter media and demand-based cleaning control to reduce downtime and resource consumption while enabling continuous dust collection and disposal.

Key features

• Standard epitropic anti-static filter media to prevent static electrical charge build-up on dust particles.
• Range of alternative filter media available to match particulates such as oil-coated dusts, plastics and minerals.
• Solid-state demand-based control triggers bag cleaning only when required, reducing compressed air and electricity use.
• Base dust discharge via butterfly valve into heavy-duty plastic sacks or steel bins for continuous disposal without interrupting operation.

Safety and compliance
Units are designed and manufactured to meet current ATEX and CE requirements and include integrated safety measures for explosive dust hazards (e.g. materials producing Class A explosive dust such as paper and board).

• Explosion relief panels can be fitted to any side of the unit; Paramount's design orients panels upward to minimise the clear area required for venting.
• Non-return valves control blow-back pressure in the event of an explosion.
• Optional proprietary spark and flame detection and extinguishing systems are available for enhanced protection.

Applications and options
Suitable for a wide range of industrial and process applications that generate fibrous and fine dust. Paramount can supply single or small multi-bag systems for specialist uses and configure systems for various fume and dust extraction requirements.

Technical specifications

• Product type: CA Reverse Jet Filter (reverse-jet bag filter design).
• Standard filter media: epitropic anti-static media (standard).
• Alternative media: options for oil-coated dusts, plastics, minerals.
• Control: solid-state demand-based cleaning (reduces compressed air and electricity consumption).
• Dust collection: base collection via butterfly valve into heavy-duty plastic sacks or steel bin (continuous disposal).
• Explosion protection: angled explosion relief panels (fittable to any side); non-return valves for blow-back protection.
• Optional safety: spark and flame detection and extinguishing systems available.
• Compliance: designed to meet ATEX and CE directives.
• Designed application: handling fibrous and fine dusts, including materials classified as Class A explosive dust (e.g., paper and board).
