Overview
Paramount CA Reverse Jet Filter units are engineered for continuous, non-stop industrial air cleaning. They handle high volumes of fibrous and fine dust, with configurable filter media and safety features for operations where static, fine particulates and explosion risk are concerns.

Key points

• Built for true continuous (non-stop) operation.
• Standard epitropic anti-static filter media to reduce static build-up on fibrous dusts.
• Optional media available for oil-coated dusts, plastics and mineral particulates.
• Solid-state on-demand reverse-jet cleaning control to minimize compressed air and energy use.
• Collected dust discharged via a butterfly valve into heavy-duty plastic sacks or steel bins without stopping the unit.
• Designed and manufactured to comply with ATEX and CE directives for explosive dust environments.
• Equipped with explosion relief panels (mountable on any side, angled upward to reduce required clearance) and non-return valves to control blow-back pressures.
• Optional proprietary spark and flame detection and extinguishing systems are available.
• Available in single-bag, small multi-bag and larger multi-bag configurations; versions for fume extraction are offered.

Typical variants / gallery descriptors

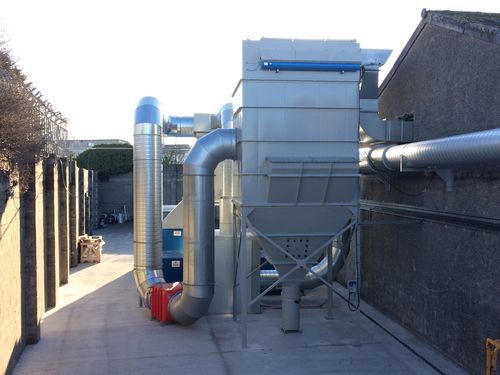

• CA Reverse jet filter unit
• Large CA Reverse jet filter unit
• Large Paramount CA Reverse Jet Filter Unit
• Small Paramount CA Reverse Jet Filter Unit over briquetter
• Small filter system with briquetter
• Single filter

Applications
Suitable for industries producing fibrous and fine dust such as paper and board handling (Class A explosive dust), cardboard manufacture and conversion, film and foil processing, food production, general manufacturing and processing, and tissue and paper sectors where static generation and explosion risk must be managed.

Technical specifications

• Product family: CA Reverse Jet Filter
• Standard filter media: epitropic anti-static media
• Optional filter media: variants for oil-coated dusts, plastics, minerals
• Cleaning control: solid-state on-demand reverse-jet cleaning (intelligent, not fixed-cycle)
• Dust discharge: butterfly valve to heavy-duty plastic sacks or steel bin
• Safety compliance: designed and manufactured to latest ATEX and CE directives
• Explosion protection: explosion relief panels (angled upwards) and non-return valves for blow-back management
• Optional safety: spark and flame detection and extinguishing systems available
• Configurations: single bag, small multiple bag systems, larger multi-bag units; units for fume removal available
• Ideal for handling: fibrous dusts, fine dusts, static-prone dust streams
