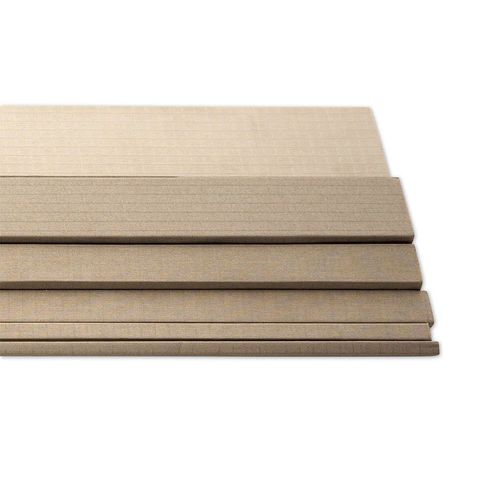

Flat gasket SOFT-SHIELD® 3700

rectangularfoamfabric

Parker Chomerics SOFT-SHIELD® 3700 series foam gaskets are wrapped in a nickel-plated copper rip stop fabric and are ideal for low compression force, elevated temperature, electronic enclosure sealing Parker Chomerics SOFT-SHIELD® 3700 series high durability silicone foam core gaskets are wrapped in a nickel-plated copper polyester rip stop fabric and are ideal for low compression force, electronic enclosure sealing applications where elevated temperature ranges (up to 125°C) are a concern. SOFT-SHIELD® 3700 will not require expensive tooling, virtually eliminating supply startup costs. The unite fabric wrap resists oxidation, proving a reliable and long term solution for EMI shielding and electrical grounding. Applications for SOFT-SHIELD® 3700 include automotive, military, and information technology markets that often encounter high temperature environments. It is offered in square and rectangular cross sections and with optional pressure sensitive adhesive (PSA). Features and Benefits: • Operating range from -40°C to 125°C • Low closure force (required less than 1 lb./inch) • Low compression set (less than 10%) • UL 94 V0 flammability rated • Excellent shielding effectiveness (>100 dB between 100 MHz and 3 GHz) • Abrasion and shear resistant conductive fabric jacket • ROHS and REACH compliant • Low cost compared to industry alternative (i.e. fingerstock) Typical Applications: • Between screws and chassis • On heat sinks • Panel seals • Cover seals • Door seals • Grounding tabs • Vent Seals • Improved ground paths
