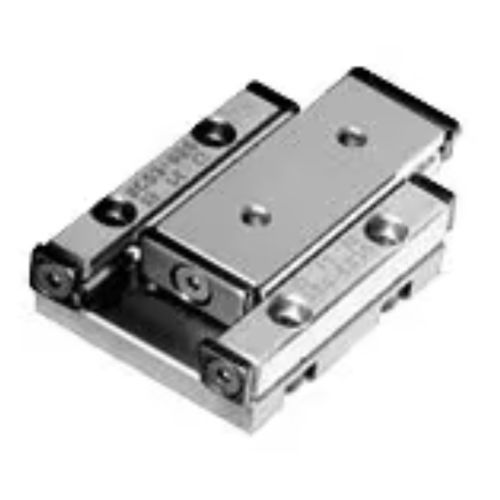

Ball bearing linear slide SW038 series

crossed rollerprecisionaluminium

The SW038-series of miniature crossed roller bearing guided manual linear slides offer travels of up to 7.8", a high payload capacity of up to 789 lbs, plus very good smoothness, very low friction and a very good straightness and flatness accuracy Parker’s SW Series of The crossed roller slide bearing system is composed of two rows of rollers. Each roller is alternately crossed at 90° with the next and captured in “V” grooves, located on the base and top. Since rollers provide a larger (line) contact surface than ball bearings, a crossed roller slide has higher load carrying capability than a ball slide of comparable size. The SW Series is our smallest crossed roller slide. The SW038 offers excellent precision, smooth motion, and a long life in a package that is only 38 mm wide. Markets: • Life Science • Photonics • Optics Features/Benefits: • Travels up to 7.8” • Payloads up to 789 lbs • Lightweight aluminum construction provides corrosion resistance • Crossed roller design provides longer bearing life, higher load capacity, smoother rolling motion, increased mechanical stiffness uses proprietary 2V grinding process. • Raceway banking pad provides a flat and straight banking point • Patented preload screws Applications: • Metrology • Focusing • Laser alignment
