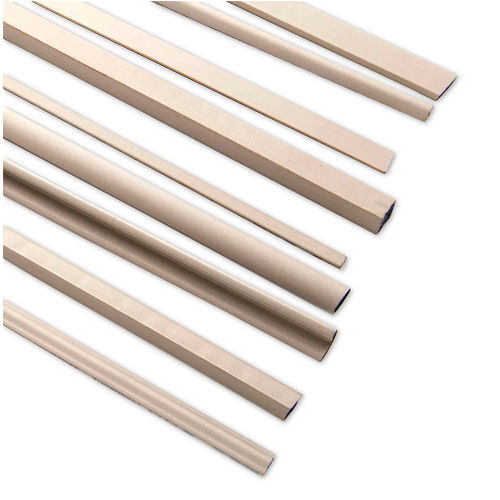

EMC shielding material SOFT-SHIELD® 3800

Short description
Parker Chomerics SOFT-SHIELD® 3800 series electrically conductive fabric-over-silicone-foam EMI shielding and grounding gasket designed for low-closure-force and high-temperature electronics applications.

Typical applications

• EMI/RFI sealing and grounding for electronic enclosures
• Low-closure-force gasketing where sensitive connectors or seals are used
• High-temperature electronics and industrial equipment

Technical specifications

• Series: SOFT-SHIELD® 3800
• Product type: Electrically conductive fabric over silicone foam EMI shielding and grounding gasket
• Specifications met: UL 94 V-0
• Standard length (listed): 96 inch
• Noise shielding level: > 100 dB
• Operating temperature range: -40 to 125 °C (-40 to 257 °F)
• Materials: Conductive fabric laminated to silicone foam
• Availability: Multiple pre-defined profiles and heights/widths; options with or without PSA and with or without extended liner

Product variants (examples)
Multiple part-numbered options are available in shapes C, D, Knife-Edge, L, P, Stealth and T. Typical variants offer heights from ~0.070 in to 0.675 in and widths from ~0.091 in to 0.751 in (dimensions listed in inches and mm in product table). Example part formats: 38-111-3601-9600 (D, without PSA), 38-111-3811-9600 (Knife-Edge, without PSA), 38-111-3830-9600 (C, without PSA). For full variant list see product table or contact supplier for custom sizes and options.
