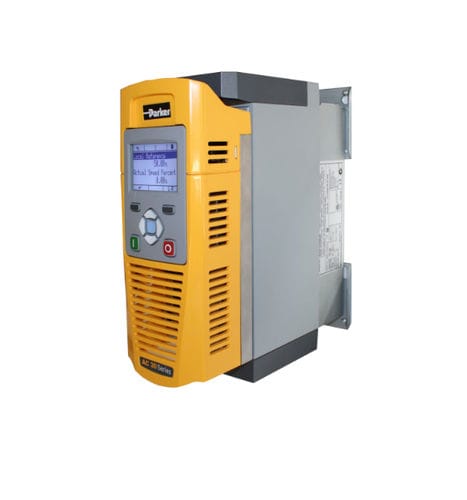

Induction AC drive AC30 series

vector controlthree-phasebrushless

Short Description
The Parker AC30 series AC variable frequency drives deliver precise motor control for general-purpose industrial applications from 1.1 to 132 kW. Designed for single-axis installations, the AC30 supports multiple motor types and flexible communications for straightforward integration into automation systems.

Technical specifications

• Brand: Parker
• Product type: AC drive (variable frequency drive)
• Series: AC30
• Drive axis type: Single axis
• Input voltage: 3×380–480 VAC
• Output power: 1.1–132 kW
• Compatible motor types: Brushless servo; Frameless servo; Induction; Spindle; Permanent Magnet AC (PMAC)
• Compatible feedback devices: Resolver; Incremental encoder
• Control modes: V/Hz; Sensorless vector; Speed control for permanent magnet motors
• Communication interfaces: RS485/Modbus RTU; CANopen; Ethernet/IP; EtherCAT; Profibus; Profinet
• Operating temperature: 0–40 °C (normal duty); 0–45 °C (heavy duty, derate to 50 °C max)
• Operating altitude: up to 1000 m ASL (derate above 1000 m)
• Overload rating: Heavy duty (constant torque) 150% for 60 s / 180% for 3 s; Normal duty (variable torque) 110% for 60 s / 180% HD FLC for 3 s
• Certifications: CE (EMC & LVD); UL; cUL; RoHS; Overvoltage Category III; Pollution Degree II/III; DNV Marine (0.75–75 kW)

Applications and options

• Suitable for pumps, fans, conveyors, machine tools and servo-driven equipment
• Communication, feedback and I/O options available separately for system integration
• Contact Parker for custom configurations, feedback devices and marine-certified variants
