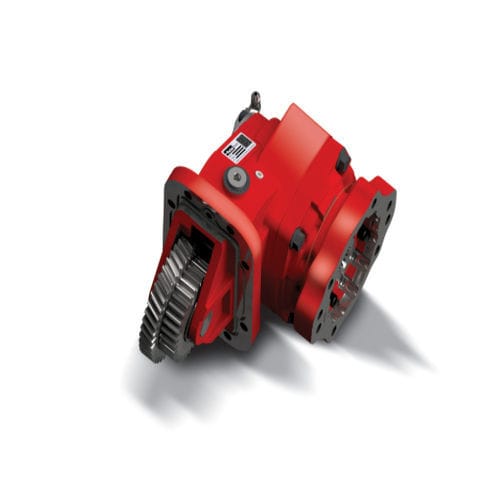

Power take-off with hydraulic clutch Z30

for trucks

Product overview
The Z30 Series is a compact, hydraulically shifted live‑drive power take‑off (PTO) engineered for passenger‑side installation on 2025 and newer Ram HD trucks. It is designed to mate with the ZF PowerLine™ TorqueFlite® HD transmission and to fit vocational applications with limited installation space.

Key specifications

• Mounting: passenger side, 8‑bolt interface
• Shift type: hydraulic actuation
• Continuous torque: 221 lb‑ft (300 Nm)
• Outlet flange options: SAE A, SAE B
• Output shaft types: SAE B (7/8" - 13T), SAE BB (1" - 15T)
• Lubrication: P (Pressure Lube)
• Weight: 50 lb (23 kg)

Applications
Intended for vocational bodies and upfits where a live‑drive PTO is required but space is constrained. Common applications include service/utility bodies, aerial units, and other truck equipment installations on Ram HD 2025+ where compatibility with the ZF PowerLine TorqueFlite HD transmission is necessary.

Technical specifications

• Transmission Manufacturer: ZF
• Mounting Type: 8‑Bolt
• Continuous Torque: 221 lb‑ft (300 Nm)
• Shift Type: Hydraulic
• Outlet Flange Type: SAE A, SAE B
• Output Shaft Type: SAE B (7/8" - 13T), SAE BB (1" - 15T)
• Lubricant: P (Pressure Lube)
• Weight: 50 lb (23 kg)
