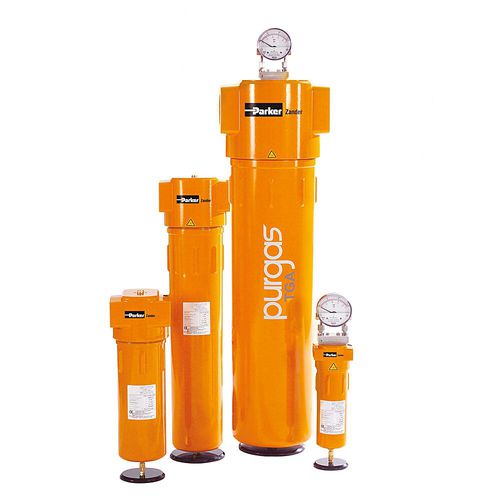

Gas filter TGA series

cartridgepressureindustrial

The Parker Zander Purgas range of filters offer a wide range of filtration solutions for the removal of solid and liquid particles and vapours from critical industrial gases and natural gases. The TGA filter series is available for pressure levels PN16, PN25 and PN50. They are constructed from high quality materials, manufactured using thorough cleaning and production methods and provide full traceability. The housings are made from aluminium casting, internally and externally chromated, and also have an additional epoxy coating on their exterior for additional protection. The Parker Zander Purgas range of filters offer a wide range of filtration solutions for the removal of solid and liquid particles and vapours from critical industrial gases and natural gases. The TGA filter series is available for pressure levels PN16, PN25 and PN50. They are constructed from high quality materials, manufactured using thorough cleaning and production methods and provide full traceability. The housings are made from aluminium casting, internally and externally chromated, and also have an additional epoxy coating on their exterior for additional protection. All TGA filters are equipped with a stainless steel needle valve on the outlet, as standard. A variety of different filter elements are available: • Separator/demister inserts • Surface filtration elements for coarse separation • Micro filter elements for depth filtration • Cartridge inserts for the adsorption of oil vapours and moisture • As an option TGA Series filters can be supplied to meet with Ex II 2G classification
