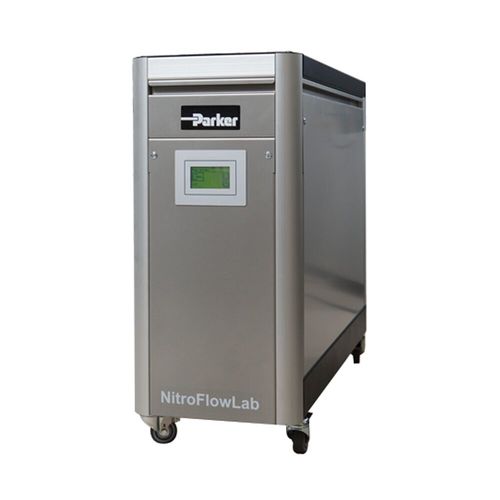

Pure nitrogen generator NITROFLOW LAB
processmobilefor LC/MS

pure nitrogen generator
pure nitrogen generator
Add to favorites
Compare this product

Characteristics

Gas characteristics
pure
Domain
process
Other characteristics
mobile, for LC/MS
Flow rate

32 l/min (8.454 us gal/min)

Output pressure

8 bar (116.03 psi)

Description

Complete 'plug and play' generator producing up to 99.5% purity hydrocarbon and phthalate-free LC/MS grade nitrogen gas. NitroFlow Lab is a self-contained nitrogen gas generator that produces up to 32 lpm of pure LC/MS grade nitrogen at pressures up to 8 bar. Nitrogen is produced by utilising a combination of compressor and membrane separation technologies. High and low pressure compressors are carefully matched to the hollow fibre membranes to ensure quiet and reliable operation. Oil free compressed air is passed through the unique proprietary hollow fibre membranes which separate the air into a concentrated nitrogen stream. Typical applications include LC/MS, LC/MS/MS, nebuliser gases for APCI and ESI, ELSD, Turbo Vaps and chemical solvent evaporation. The NitroFlow Lab has been tried and tested by all the major LC/MS manufacturers. Features / Benefits: • Complete “Plug and Play” system recommended by all major LC/MS manufacturers • Produces a continuous supply of nitrogen for all LC/MS applications • Phthalate-free, no organic vapours • Eliminate dangerous nitrogen cylinders from the laboratory • 8,000 hours compressor warranty • Internal acoustic dampening ensures quiet operation The unique combination of the dual compressor technology ensures that the NitroFlow Lab has several unique technical advantages over all other existing LC/MS Nitrogen Generators. Nitrogen is produced at low pressure and then compressed to 8 bar. This ensures minimal maintenance of the system with no compressed air filter replacements or waste condensate. The compressor life is guaranteed under the Parker warranty for 8,000 continuous running hours.
