Belt conveyor T8048

handlingloadingdischarge

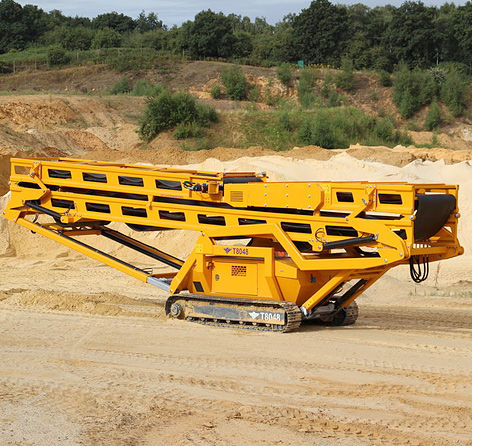

Designed for ease of mobility on site, the T8048 is manufactured with a highly robust chassis for optimal strength and rigidity in difficult terrain and working environments such as those normally associated with quarry conditions. Key features of the tracked conveyor include: Robust and durable track mounted chassis. Hydraulic folding system for rapid on-site equipment set up. Hydraulically adjustable feed box height and stockpile discharge height. Heavy duty 1000mm (48”) wide high capacity troughed conveyor belt. Thermostatically controlled hydraulic oil cooler fitted as standard. Pendant remote control for ease of tracking mobility on site and during transportation/loading. Dual hydraulic motor drive of rubber lagged conveyor head drum. Warning alarm siren and flashing beacon fitted for alert prior to tracking and operation. Automatic engine shut-down for low oil pressure, high coolant temperature, low oil level, filter blockage and fuel contamination. Emergency stops fitted at accessible positions. Options Over belt dust covers Dust emission and suppression equipment Extended feed loading hopper Wear resistant feed hopper linings Electric drive Chevron / cleated conveyor belt for handling lightweight and difficult materials Discharge dust chute at head Full radio remote control of tracking and operational functions
