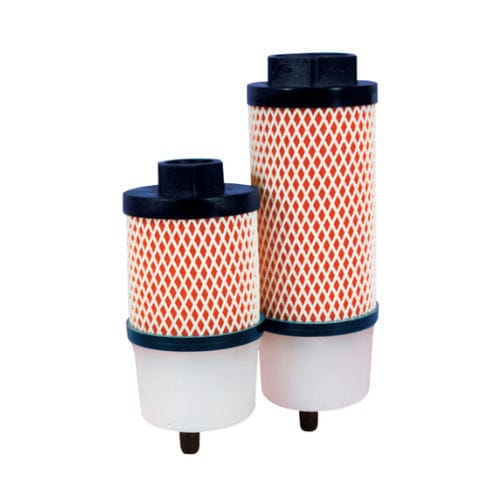

Oil mist collector MIST-X series

filtration media

Short description
Prevents oil mist from exhausted compressed air entering the atmosphere and reduces exhaust noise to accepted safety standards, supporting a safer working environment.

Industries

• Industrial Manufacturing Equipment
• Food & Beverage
• Automotive
• Electronics
• Pharmaceuticals
• Medical & Dental

Available models (examples)

• MIST-X25 — Flow Rate: 90 m³/hr @ 7 barg (53 CFM @ 102 psig); Port Size: ½ inch
• MIST-X50 — Flow Rate: 180 m³/hr @ 7 barg (105 CFM @ 102 psig); Port Size: 1 inch
• MIST-X150 — Flow Rate: 540 m³/hr @ 7 barg (315 CFM @ 102 psig); Port Size: 1½ inch

Technical Specifications (table)
Division: Gas Separation and Filtration Division EMEA
Brand: Parker
Technology: Filtration
Product Type: Oil Eliminator / Exhaust Silencer
Product Series: MIST-X
Application: Compressed Air and Nitrogen Gas Applications
Industry: Industrial Manufacturing Equipment; Food & Beverage; Automotive; Electronics; Pharmaceuticals; Medical & Dental
Flow Rate: 90 to 540 m3/hour at 7 barg, 53 to 315 CFM at 102 psig
Port Size: 1/2 to 1-1/2 inch
Connection Type: BSPP or NPT
Noise Level: 25 dBA Reduction
Operating Temperature: 2 to 50 °C, 36 to 122 °F
Height: 113 to 206 mm, 4.4 to 8.1 inch
Diameter: 60 to 86 mm, 2.4 to 3.4 inch
Weight: 100 to 370 g, 3.5 to 13 oz

Features / Technical Specifications

• Series: MIST-X
• Product type: Oil Eliminator / Exhaust Silencer
• Technology: Filtration
• Applications: Compressed air and nitrogen gas systems
• Flow rate range: 90–540 m³/hr @ 7 barg (53–315 CFM @ 102 psig)
• Available port sizes: ½ inch, 1 inch, 1½ inch
• Connection options: BSPP or NPT
• Noise reduction: up to 25 dBA
• Operating temperature: 2–50 °C (36–122 °F)
• Dimensions (H x Ø): height 113–206 mm; diameter 60–86 mm
• Weight range: 100–370 g
• Typical industries: Manufacturing, Food & Beverage, Automotive, Electronics, Pharmaceuticals, Medical & Dental
