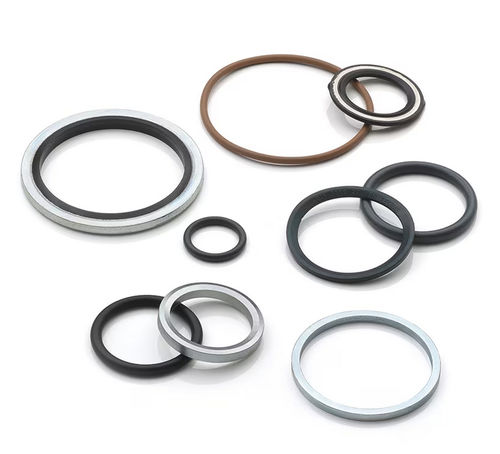

O-ring seal
circularbondedNBR

O-ring seal
O-ring seal
Add to favorites
Compare this product


Characteristics

Type
O-ring
Configuration
circular, bonded
Material
NBR
Application
construction, for agricultural applications, for fittings, for machine tools, handling, military
Fluid
oil, for gas
Temperature limit

Min.: -30 °F
(-34 °C)

Max.: 400 °F
(204 °C)

Diameter

Min.: 6 mm
(0.236 in)

Max.: 50 mm
(1.969 in)

Outer diameter

Min.: 6 mm
(0.236 in)

Max.: 50 mm
(1.969 in)

Description

Parker offers a full line of high quality replacement O-rings, Seals and Retaining Rings for industrial fittings and adapters. Markets: • Construction • Military Ground Systems • Aerial Lift • Agriculture • Material Handling • Military Marine • Machine Tool • Transportation • Alternative Energy • Off-Shore/Oil & Gas Features/Benefits: • Standard o-rings and seals supplied with tube fittings and adapters are 90 durometer hard nitrile with high extrusion resistance making them suitable for very high pressure static applications. • Fluorocarbon o-rings and seals are available for higher temperature specifications. • For applications using different media or higher temperatures, additonal O-ring and seal materials are available upon request. • Broad range of options: O-ring Face Seal (ORFS) tube end, SAE, ISO 6149, metric, BSPP and JIS B2351 port ends, and SAE 4-bolt flange o-rings, as well as metric and BSPP retaining rings and BSPP bonded seals. Applications: • Replacement o-rings, seals and retaining rings for fitting and adapters in hydraulic fluid and gas handling connections Product Type O-rings, Retaining Rings and Seals Product Style All of the O-ring, Retaining Ring and Seal replacements needed for our industrial fittings and adapters Fitting Thread Size 3/4-14, 1/4-19, 3/8-19, 1/2-14, 1-11, 1 1/4-11, 1 1/2-11, 2-11, 1/8-28 inch M8X1 to M60X2 mm Polymer Material Options O-rings and seals in Nitrile-Butadiene (NBR) and Fluorocarbon (FKM, FPM) Materials of Construction Steel Retaining Rings Durometer 90 Color NBR o-rings are black, Fluorocarbon o-rings are brown

Catalogs

No catalogs are available for this product.

See all of Parker Tube Fittings Division‘s catalogs
