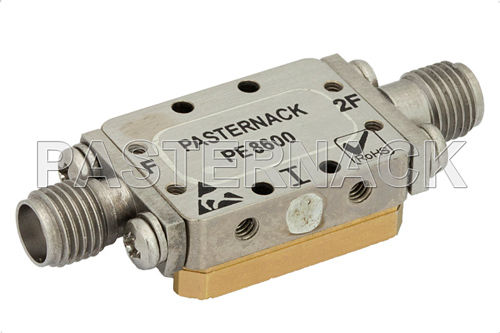

Frequency doubler PE8600 series

The PE8600 series is manufactured by Pasternack Enterprises, and is a frequency double input signal that is controlled through a band-pass filter which selects the desired harmonic (multiplied) signal. It has 50 ohm frequency multipliers that are available with SMA connectors. The operating input frequencies is ranging from 1.5 GHz to 13 GHz with output frequencies between 3 GHz and 26 GHz. It has an input drive level from +10 to +13 dBm, which has conversion loss of 8.5 dB and fundamental ISO of 25 dB. The unit has dimensions of 1.55 x 0.31 x 0.59 in which is constructed in a passivized stainless steel.
