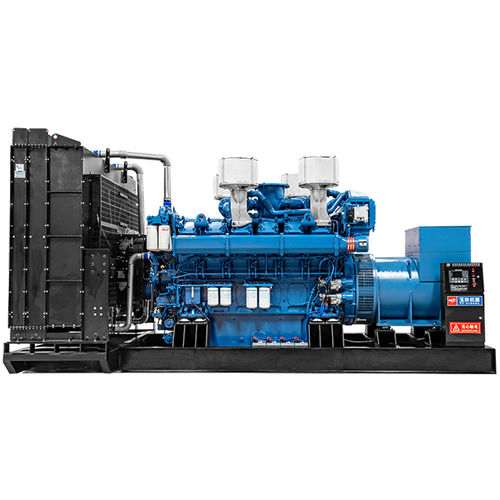

Diesel generator set PY1000Pthree-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- water-cooled
- Applications
- emergency
- Power in kVA
1,250 kVA, 1,375 kVA
(1,699.53 hp, 1,869.48 hp)- Rated capacity
1,000 kW, 1,100 kW
(1,359.6 hp, 1,495.6 hp)- Voltage
231 V, 400 V
- Rotational speed
1,500 rpm
(9,425 rad.min-1)- Length
5,035 mm
(198 in)- Width
1,815 mm
(71 in)- Height
2,595 mm
(102 in)- Weight
9,460 kg
(20,855.73 lb)
Description
Main Features:
￭PAT-TECH provides one-source responsibility for the generators and accessories
￭Transient performance meets ISO 8528-5
￭High quality and reliability power output
￭Simple structured, lower power loss, lower fault
￭Able to be operating under wide ambient conditions without de-rating output
￭Independent fuel fire system to ensure best fuel atomization and economic combustion
￭Easy startup and suitable for emergency application
￭Controllers are available to meet all applications
SPECIFICATION：
Model：PY1000P
Prime Rating：1000KW
Standby Rating：1100KW
Frequency：50HZ
Voltages：400/231V
Rated Speed：1500RPM
Power Factor：0.8 lagged
PH：3
Consult factory for 60Hz and other voltages.
Catalogs
PY1000P / PY1100S
2 Pages
