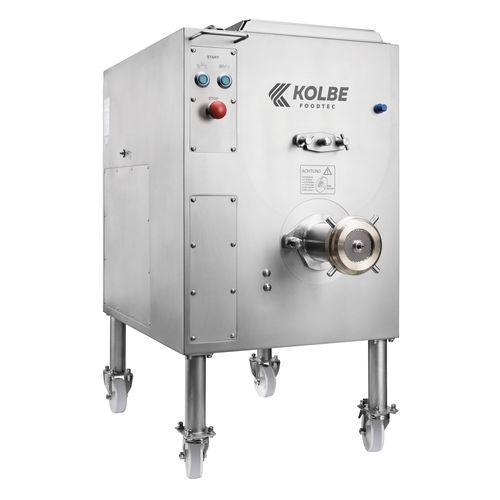

Industrial meat mixer grinder MWK32-80

automatic

The starting model for the connection with a Kolbe Foodtec PM150 portioning device. The mixer mincer has a compact drive with a good basis performance and is therefore highly suitable for portioning. The machine processes parts of fresh meat up to max. -1°C effortlessly. The MWK32-80 has a hopper of 80 liters but can be optionally equipped with a cooled version and is therefore highly suitable for the production of kebab. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Enterprise E32 Perforated plate-Ø 100 mm Hopper volume 80 Ltr. Motor voltage (3Ph) 400 V Motor main drive / Protection system IP55 3,0 (4,0) kW Motor mixer drive / Protection system IP55 0,75 kW Nominal current at 400 V – Main drive 7,1 (9,1) A Nominal current 400 V – Mixer drive 2,3 A Conductor size 2,5 mm² Fusing at 400 V (A lazy) 16 A External dimensions (W x D x H) 685 x 1237 x 1325 mm Input height 1268 mm Lower housing heigt (with cover) 591 (533) mm Noise level 70 db (A) Weight (net.) ~290 – 300 kg One speed for working worm and mixing arm / stainless steel machine / stainless lock nut / combi hook spanner / push-button-control / mashine mobile with 2 swivel and 2 fixed castors / cable connection with CEE phase plug Portioning line control / mixing time preselection / increased motor capacity 4,0kW / variable speed (stepless) / hopper cooling / foot-pedal off-switch / outlet protection cover / footstep
