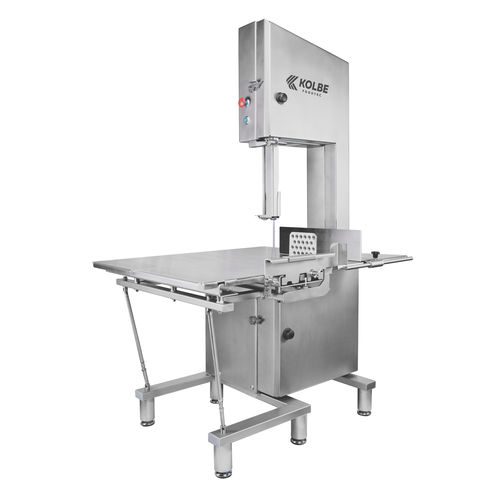

Butcher bone band saw K440H

stainless steelwith sliding table

The K440H model, additionally to its working table, has a sliding table seated on ball bearings. Higher and larger products can not only be sawed, but also exact portioned and dissected, thanks to the extended cutting height and the stronger motor. Selectively, the K440H can be equipped with a smaller RS-table (see table K440RS). Technical Data Specifications subject to change without notice. Dimensions may vary. Wheel diameter 430 mm Saw band measurements 3700 x 16 mm Blade speed 32 m/s Cutting stroke (max.) 413 mm Section of portioning 5 – 400 mm Table dimensions (W x D x H) 1149 x 957 x 910 mm External dimensions (W x D x H) 1327 x 1017 x 2143 mm Motor capacity / Protection system IP54 (Optional) 4,0 kW Nominal current at 230 V 400 V (Optional) 14,9 / 8,6 A Conductor size 2,5 mm² Fusing at 230 V / 400 V (A lazy) 20 / 16 A Noise level 70,5 db (A) Weight (net.) ~315 – 325 kg The bandsaw is available as a right sided, as well as left sided version. The K440H is also available as a mobile version with with 2 swivel and 2 fixed castors. The bandsaw can also be equipped with a inverter regulated second speed for the 2,9kW motor capacity, or for the 4,0kW or 6,2kW increased motor capacity.
