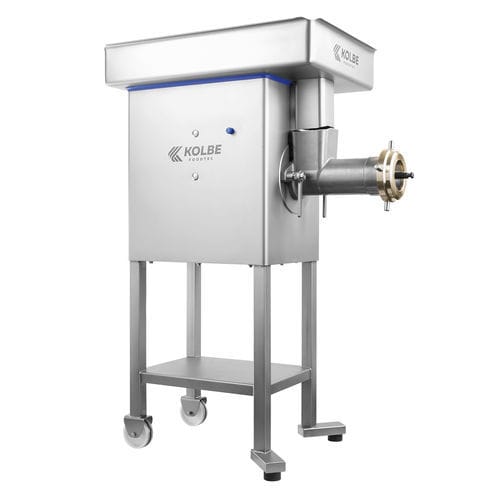

Industrial meat mincer SW100H
fresh meaton castersbutcher

Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 2
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 3
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 4
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 5
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 6
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 7
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 8
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 9
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 10
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 11
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 12
Industrial meat mincer - SW100H - Paul Kolbe GmbH Foodtec - fresh meat / on casters / butcher - image - 13
Add to favorites
Compare this product

Characteristics

Minced product
meat
Type
fresh meat
Installation
on casters
Application domain
butcher
Electric powered
400V three-phase
Other characteristics
with manual feed, stainless steel
Output

950 kg/h
(2,094.39 lb/h)

Hopper volume

45 l, 64 l
(12 gal, 17 gal)

Motor power

2.9 kW
(3.94 hp)

Grid diameter

100 mm
(4 in)

Sound pressure

75 dB

Length

895 mm, 1,065 mm
(35 in, 42 in)

Width

545 mm, 627 mm
(21 in, 25 in)

Height

1,111 mm, 1,317 mm
(44 in, 52 in)

Weight

Max.: 110 kg
(242.5 lb)

Min.: 106 kg
(233.7 lb)

Description

The SW is also available in a hightened version as the SW100H. Upon request this model can also be confi gured with a 64 liter bowl, an extendable tray and completely mobile. Technical Data Specifications subject to change without notice. Dimensions may vary. Cutting system Enterprise E32 Nominal current at 400 V 6,9 A Conductor size 1,5 mm² Fusing at 400 (A lazy) 16 A Input height 1111 mm Lower housing height (with cover) 600 mm
