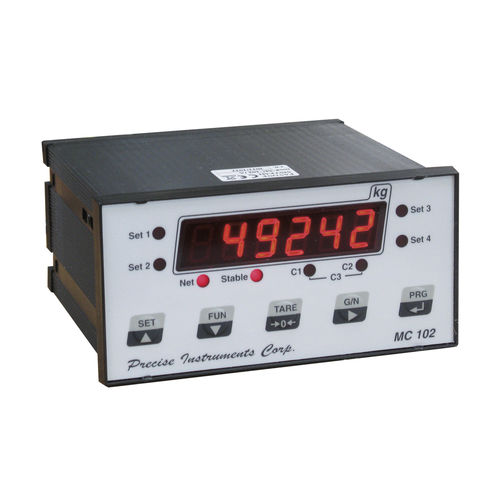

Digital weight indicator MC 102

DIN railIP54programmable

The MC 102 weight indicator is small, easy to assemble and programmable from the keyboard. It has removable screw terminal blocks and it guarantees high accuracy at a very low cost. The weight indicator MC 102 is designed for load cells, tanks, hoppers, silos and platforms. The MC102 product allows you to manage both automatic weighing sequences with threshold control and single-component batching processes in loading and / or unloading. Technical Specifications Measuring range: -3.9 ÷ +3.9 mV/V Input sensitivity: 0.02 µV/count Full scale non-Linearity: < 0.01% Gain drift: 16.000.000 points Trasducer input voltage: 5 Vdc 120 mA (max 8 cells - 350 Ohm) Visible resolution (in divisions): 999999 Decimal figures range: 0 ÷ 4 Temperature range: -10 ÷ +50 °C Storage temperature: -20 ÷ +70°C Filter: 0.2 ÷ 25 Hz Logic output: 4 relays (NA) Max. 115 Vac/30 Vdc 0.5 A each Logic input: 3 optoisolated 12 Vdc/24 Vdc PNP Serial port: COM1: RS232 half duplex COM2: RS422/RS485 half duplex Regulatory compliance: EN61000-6-3, EN1000-6-2, EN61010-1 Drilling template: 139 x 67 mm (W x H) Dimensions: 144 x 72 x 120 mm (W x H x D) Fieldbus: ASCII, Modbus, Printers Custom P190 o FT190, EPSON Baud rate: 300 ÷ 115200 (adjustable) Transmission distance: 15m (RS232C), 1000m (RS422; RS485) Isolation: Class II Power consumption: 230 Vac ±10% - 50/60 Hz absorbed power 7 W (115 Vac on demand)
