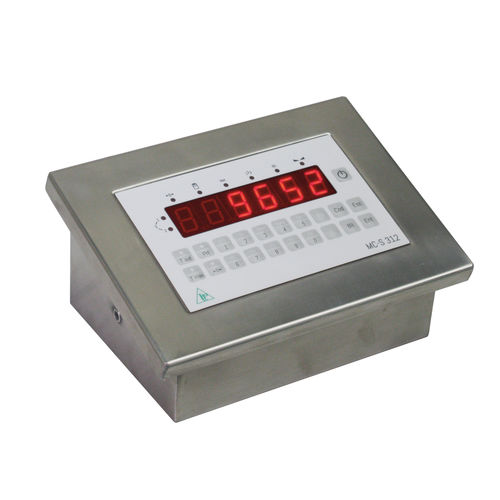

LED display weight indicator-transmitter MCS 312

panel-mountIP67waterproof

Pavone Sistemi presents MC S 312 weight indicator. It is ideal for use in implementation of weighing and dosing in hazardous areas. It has CE Certification as per ATEX Directive 94/9/EC. The indicator is made of AISI 304 stainless steel. It has IP67 protection. It has a high-efficiency red LED display with 20mm height, 6 digits, and 7 segments. It comes with a 21-key water-resistant, membrane keyboard with tactile effect. The indicator has a 24-bit A/D converter featuring two channels. With these channels, two weighing platforms can be managed simultaneously with 150,000 div as maximum displayable resolution. The instrument provides power supply of 230 Vac ± 10% or 7,5 Vdc/1900 mA. Power consumption is 400 mA with Nr 8 load cells of 350Ω and option cards. Transducer input voltage is 5 Vdc ±5%, 120 mA and measurement range is between -3.9 to +3.9 mV/V. It offers input sensitivity of 0.2 microV/ per count. Linearity is <0.01% of full scale. MC S 312 is available for use in ATEX area zone 1,21.
