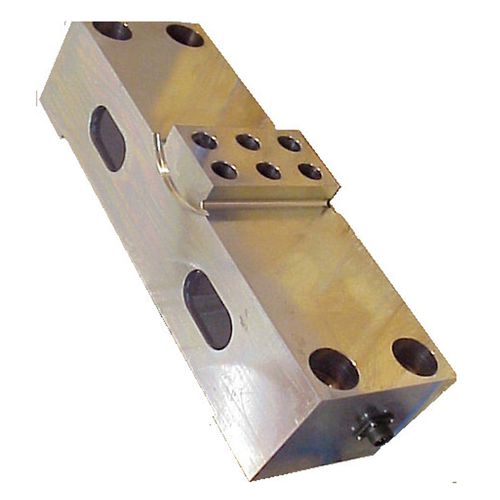

Double-ended shear beam load cell DSA-Rbeam typecapacitivefor silos
Add to favorites
Compare this product
Characteristics
- Type
- double-ended shear beam
- Form
- beam type
- Technology
- capacitive
- Applications
- for silos, for hopper
- Other characteristics
- steel, IP65
- Rated load
Min.: 50 t
(55.12 us ton)Max.: 200 t
(220.46 us ton)
Description
Capacity 50t, 100t, 150t and 200t (other capacities on request)
Operating temperature range -40 to +150°C
15m special cable with connector for direct connecting to the load cell
Zinc-plated steel
IP65
Temperature monitoring via integrated temperature sensor (2-wire circuit)
Indicator which change the color if a too high temperature was reached
Silo and hopper weighing
Various applications in steel mills and foundries
