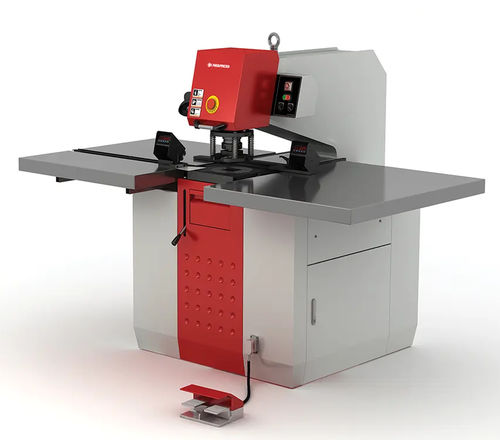

Automatic punching machine HPM-63S

hydraulicsheet metalpunching

Product overview
The PAYAPRESS HPM-63S is a single-operator automatic sheet metal punching and notching machine designed for precise punching, corner cutting and ventilation louvres on panels, switchgear, elevators and extractor housings. A double-acting 16-ton hydraulic system (200 bar) drives each punch and notch through steel up to 2 mm using a 63 cm throat. A heavy 1,200 kg frame and a 70 mm adjustable punch stroke ensure stable, repeatable operation. A laser center finder and optional digital position indicators support fast, accurate hole placement.

Operator controls & positioning

• Simple, operator-friendly control layout for single-operator use.
• Optional digital ruler indicator for X/Y position display.
• Manual Y-axis lock for series hole punching without repositioning the sheet.
• Each axis references a fixed HOME point (X at travel right end; Y at stroke end) detected by an inductive sensor for repeatable placement.

Dies and tooling
The machine uses a modular die system with replaceable components (punch, die/matrix, connectors, locking nut) so only worn parts are changed, lowering tooling costs. Common die types supported include:

• Round dies — holes up to 34 mm for signal lamps, bolts (M4 and up), and cable glands
• Small square dies (7×7, 9×9, 15×15 mm) — alternatives to screws and fasteners
• Square die 22×22 mm — legacy switchgear-panel standard (produced on request)
• Miniature fuse dies — sized to accommodate paint thickness when required
• Straight-cutting square die — economical option for parallel cuts
• 92×92 mm ammeter die — common custom die
• Embossing (counterbore) dies — raise standoffs for mounting clearance or joining panels
• Lock dies — Siemens-type, briefcase-type, Mito-type
• Ventilation louvre dies — double-row and triple-row variants aligned via reference marks
• Corner-notching dies — simple notches (standard up to 50 mm), double-bend and fully custom corner dies

Why choose this machine
The HPM-63S consolidates punching, notching, cornering and venting tasks in a single compact machine. Its modular die system, low tooling cost and straightforward operator controls make it suitable for panel and switchgear production lines. It can be paired with dedicated corner forming equipment when required.

Additional functional features

• Laser center finder for accurate hole placement
• Fast-change dies to reduce tooling change time
• Emergency stop for operator safety
• Optional digital X/Y ruler indicator and manual Y-axis lock for serial punching

Technical specifications

• Model: HPM-63S
• Type: Sheet metal punching and notching machine (single-operator)
• Punching force: 16 ton (double-acting hydraulic)
• Operating pressure: 200 bar
• Max material thickness: up to 2 mm (mild, structural, stainless steel)
• Throat depth: 63 cm
• Punch stroke: 70 mm adjustable
• Frame weight / stability: approx. 1,200 kg
• Rated voltage: 380 V AC
• Total power: 3 kW
• Frequency: 50 Hz
• Hydraulic oil capacity: 30 L
• Max die dimensions: Ø133 mm (round) — 130 × 110 mm (square)
• Max round hole capability: up to 34 mm
• Max working width / sheet capacity: 1,200 mm
• Operators required: 1
