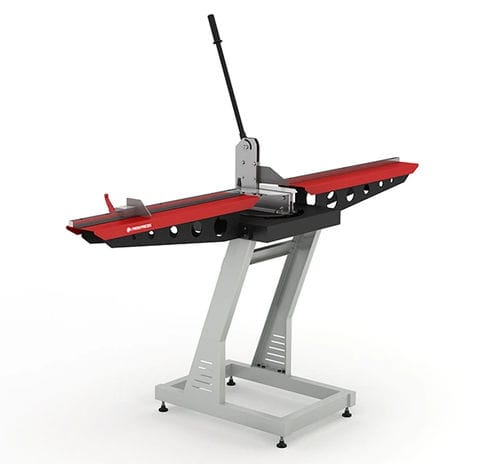

Plastic cutting tool DUC-100

for PVCsteelfor cables

Product overview
The DUC-100 wiring duct cutter is a bench-mounted tool for cleanly shearing slotted PVC wiring ducts and their snap-on covers in a single pass. It is intended for repeated workshop use and handles duct widths up to 100 mm.

Purpose and daily use
The DUC-100 is designed for panel shops and cable-routing centres that cut duct to length frequently. It reduces operator effort compared with sawing, provides repeatable lengths via a longitudinal stopper and delivers consistent, burr-free edges.

Applications

• Electrical panel assembly lines and cable-routing centres
• Installation and maintenance teams in factories, hospitals and commercial buildings
• Industrial electrical workshops requiring high-volume, repeatable cuts

Advantages

• Uniform cutting quality and cleaner edges for improved cable routing finish
• Reduced rework and faster installation thanks to precise length setting and repeatable cuts
• Improved operator safety compared with manual cutting tools
• Low maintenance cost due to simple construction and durable HSS blade

Key features and operation
The DUC-100 shears ducts and duct covers in one pass up to 100 mm width. It features a replaceable HSS tool-steel blade, a rotating head for straight, angled and miter cuts, a longitudinal stop for repetitive cutting and clamps to secure the workpiece. The rotating angle guide allows angled and miter cuts without changing tools.

Performance and construction
Bench-built for heavy daily use, the DUC-100 has an electrostatic surface coating for scratch resistance. The unit is designed to operate at a working pressure of 200 bar to provide the force required for clean cuts with minimal operator effort.

Maintenance and safety tips

• Keep the blade surface clean; sharpen or replace the blade when it becomes dull.
• Secure the workpiece with the clamps during cutting and use protective gloves.
• Lock the angle guide before performing each miter cut.

Technical specifications

• Model: DUC-100
• Function: Cutting slotted PVC wiring ducts and duct covers
• Maximum duct width: Up to 100 mm
• Blade material: HSS tool-steel (replaceable/resharpenable)
• Features: Longitudinal stop for repetitive cutting; rotating angle head for straight, angled and miter cuts; clamps for workpiece fixation
• Surface treatment: Electrostatic coating
• Working pressure: 200 bar
