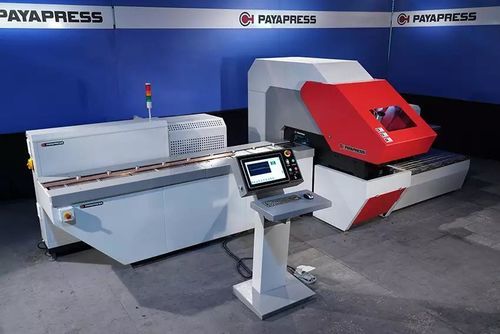

CNC busbar machine HBC-CP.CNC200

cuttingpunchingfixed

Overview
The HBC-CP.CNC200 is a CNC busbar machine that integrates punching and shearing on a single programmable platform. It processes copper and aluminum busbars for LV switchgear and distribution-board fabrication with a maximum cross-section up to 200 × 20 mm (some documents reference 200 × 15 mm). Industry 4.0 ready for line integration.

Key capabilities

• Combined punching and cutting/shearing from one setup to reduce handling and re-clamping
• Automated CNC stopper for accurate, repeatable positioning of cuts and holes
• Tool head with 7 stations (6 punching tools + 1 cutting tool)
• Supports Ø28 mm punching dies and a range of hole diameters

Machine functions and operator workflow
The floor-mounted unit executes the full shearing-and-punching cycle. An operator loads the bar, the CNC stopper positions each operation and the machine performs punching and cutting per the programmed sequence. Production programs and batches can be stored and recalled to ensure repeatability and reduce setup time.

Controls and safety features

• Control console for program input and visual instructions
• Main power isolator and emergency-stop for operator safety
• Punching and cutting stations sized for the stated capacity
• Hydraulic and electrical protection functions for reliable operation

Benefits for production

• Reduced floor space and fewer handling steps compared with separate punching and cutting stations
• Eliminates re-clamping and manual handoffs between machines
• Lower scrap rate through CNC-controlled positioning and repeatable cycles
• Single machine for copper and aluminum reduces capital-equipment requirements

Technical specifications

• Model: HBC-CP.CNC200
• Functions: Cutting + Punching (combined)
• Max capacity: 200 × 20 mm (documents may also reference 200 × 15 mm)
• Max die / hole diameter: Ø28 mm
• Material compatibility: Copper & Aluminum
• Positioning (stopper): CNC-controlled
• Rated voltage: 380 V AC
• Total power: 17 kW
• Frequency: 50 Hz
• Operating pressure: 200 bar
• Hydraulic oil capacity: 290 L
• Machine weight: 5,400 kg
• Operators required: 1 (2 for parallel operation)
• Industry 4.0 ready: Yes
• Mounting type: Floor base
• Dimensions (L×W×H): 537 × 240 × 188 cm
