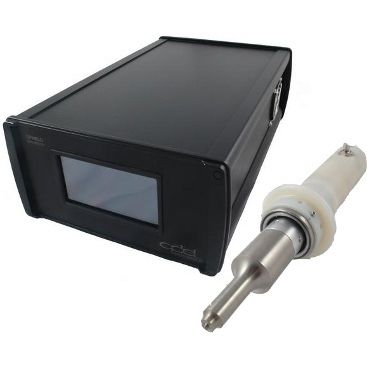

Ultrasonic welder OPWELD
single-phasewith integrated display

ultrasonic welder
ultrasonic welder
Add to favorites
Compare this product


Power supply
Other characteristics
with integrated display
Output frequency

Min.: 10 kHz

Max.: 80 kHz


Ultrasonic power generator OPWELD together with appropriate ultrasound probe create the ideal tool for the following applications: - Ultrasonic welding of plastics, foils; - Ultrasonic welding of metal (thin films); - Ultrasonic welding of materials; - Ultrasonic support of production process; - Compression and homogenization; Digital, precise control of the generated frequency, finding and control the resonance, continuously variable power control from 0 to 100% allow to choose the welding process parameters to the welding be done with high efficiency. User-friendly interface and a 5-inch touch screen display simplify the work with the generator. Features - system safe power up sequence; - transformer output; - Plug and Play configuration probe ID; - Ultrasonic overload protection; - matrix touchscreen LCD 5" with intuitive menu structure for quick easy programming; - output voltage regulated in range from 1% to 100% with step 1%; - four Temperature Sensors PT100; - dimensions: 233x121x350mm; - serial configuration port: RS232; - opportunity to work with specialized software package *), running on the Windows 95/98/ME/2000/XP/VISTA/7.0 environment; - weight: 8,2 kg; - power supply: 230 VAC /50Hz. Technical Data Frequency range: 10kHz do 80kHz*) Resolution of frequency setting: 1Hz Max. Output power: 1000W*) Max. Output Voltage: 500Vsk Shape of output voltage: SIN (h max. < 10% ) Max. load current: 6 Ask Load impedance: 50-150Ω*) (minimum) Voltage accuracy: 0.1% Current accuracy: 0.1% Phase accuracy: ±2°. (in range of +90°/-90°.)
